Getting Started

This section will guide you through your first steps with clair/c2py by wrapping a very simple C++ function and compiling it into a Python module.

C++ Code

Let us begin with the following C++ code:

getting_started.cpp

#include <c2py/c2py.hpp>

/** Some documentation
 *
 *  @param x First value
 *  @param y Second value
 *  @return The result
 */
int add(int x, int y) { return x + y; }

Here, we define a function called add, which takes two integers, x and y, and returns their sum.

Our goal is to be able to call this function from Python. Before we can to that, we need to

Generate Python Bindings and Compile the Module

In order to call C++ from Python, some binding code has to be generated. This is a piece of C++ code which adapts the C++ functions and classes to the C API of Python.

The clair_c2py tool automatizes this task

1. by parsing the original C++ code, getting_started.cpp in our case, to build the Abstract Syntax Tree (AST) and

2. by generating the C++/Python bindings from the AST.

It outputs/updates the following files:

• getting_started.wrap.cxx contains the generated bindings (based on c2py) which have to be compiled together with the original C++ code.

• getting_started.wrap.hxx contains some additional information (only needed when working with Across multiple modules).

• getting_started.cpp is updated to #include the file getting_started.wrap.cxx.

After the bindings have been generated, the only thing left to do is to compile getting_started.cpp into a Python module.

Note

Even though the bindings are readable C++ code, they are designed to be automatically generated, not written by hand. The c2py API is therefore not part of the user documentation.

To actually generate the bindings and compile the module, we can choose between two approaches:

• Use clair-c2py manually
  • Generate Python Bindings
  • Compile the Module
• Use CMake integration [Recommended]
  • Generate Python Bindings and Compile the Module
  • CMake Configuration
  • General Workflow

Both of them require clair to be installed.

The former makes it very easy to test small pieces of code. However, it requires an explicit c2py installation and can quickly become tedious for larger projects.

We therefore recommend to use CMake integration whenever possible.

Use the Python Module

Once the Python module has been compiled, we can immediately start using it:

>>> from getting_started import add
>>> add(5, 7)
12

clair-c2py also automatically generates the Python documentation from the C++ code comments, using the standard numpydoc format.

>>> help(add)
    add(...)
        Dispatched C++ function(s).

        ::

           [1] (x: int, y: int)
              -> int


        Some documentation

        Parameters
        ----------
        x : int
           First value
        y : int
           Second value

        Returns
        -------
        int
           The result

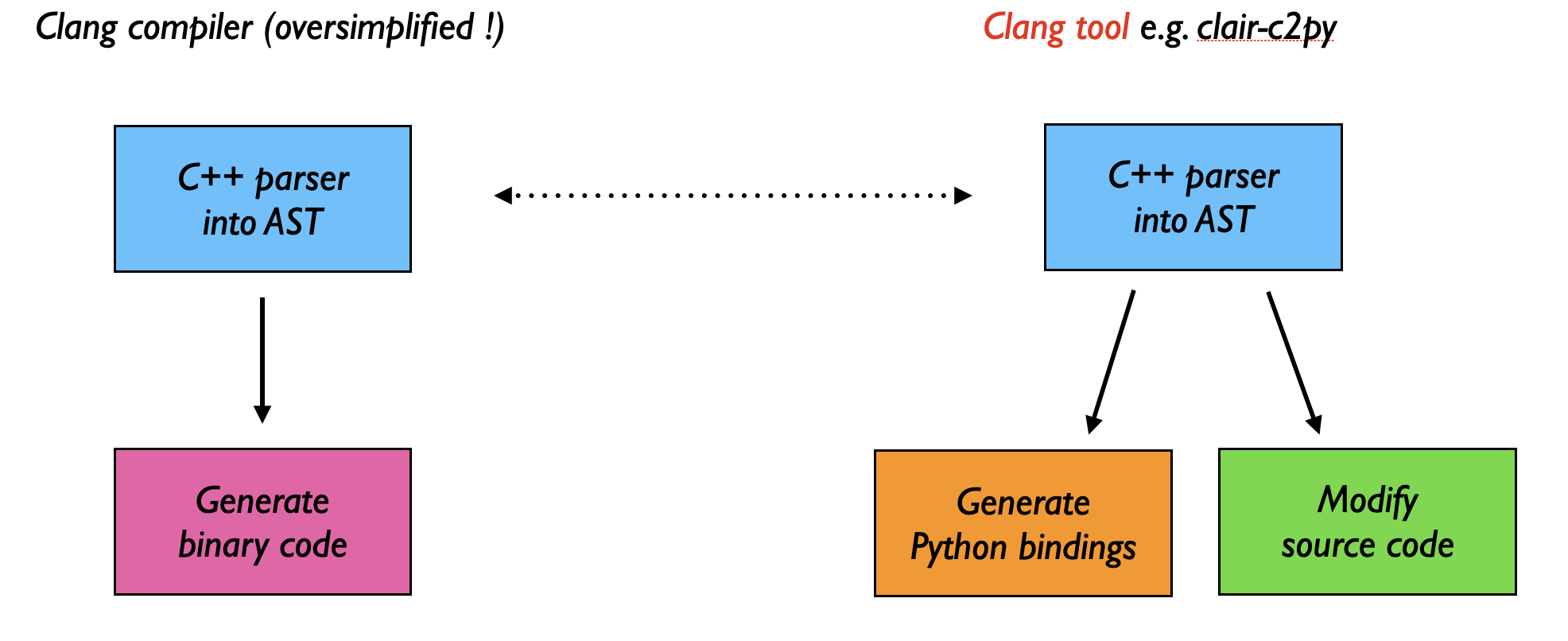

What is a Clang tool?

clair-c2py is a Clang tool: it parses C++ source files using the Clang compiler and generates Python bindings from the Abstract Syntax Tree (AST).

LLVM/Clang is a modular library used to build both the Clang compiler and tools like clang-tidy, clang-format, etc.

A Clang tool uses the same C++ parser as the compiler to build an AST, but instead of generating binary code, it analyzes or transforms the source code.

As a result, clair-c2py can parse the full C++ language, including the latest standards (C++20, C++23).

A Clang tool reuses the compiler’s parser to analyze or transform C++ code.
