Calcium imaging analysis of head-direction cells

Calcium imaging analysis of head-direction cells#

This notebook has had all its explanatory text removed and has not been run. It is intended to be downloaded and run locally (or on the provided binder), working through the questions with your small group.

Part 1 : Analyzing calcium imaging with pynapple#

For this part of the group project, we will use pynapple to do the following tasks:

Loading a NWB file
Compute tuning curves
Visualize tuning curves
Decode head-direction from neural activity

Let’s start by importing the necessary libraries and fetching the data.

import workshop_utils
import pynapple as nap
import matplotlib.pyplot as plt
import numpy as np
import nemos as nmo
import jax

# LBFGS works better with float64 precision
jax.config.update("jax_enable_x64", True)

# some helper plotting functions
from nemos import _documentation_utils as doc_plots

# configure pynapple to ignore conversion warning
nap.nap_config.suppress_conversion_warnings = True

# configure plot style
plt.style.use(nmo.styles.plot_style)

# fetch data
path = workshop_utils.fetch_data("A0670-221213.nwb")
print(path)

Load data#

Similar to part 1, we will start by loading the NWB file. The function nap.load_file can be used again.

data =  # Load NWB file
print(data)

There are multiple entries in the NWB file. The calcium transients are stored in the RoiResponseSeries entry. The head-direction of the animal is stored in the ry entry. Let’s extract them.

transients = data["RoiResponseSeries"]
angle = data["ry"]
print(transients)

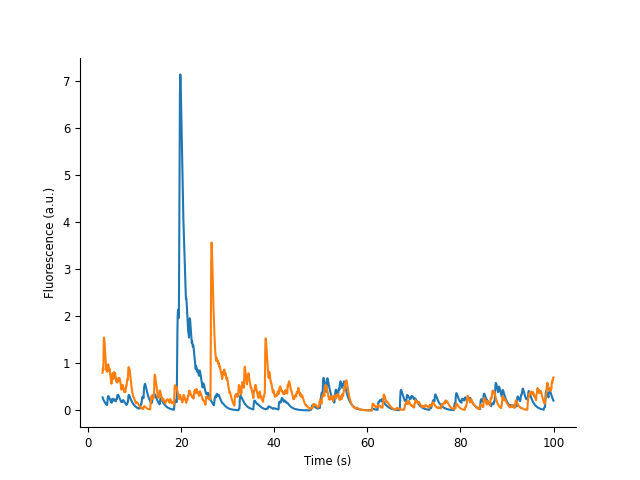

To get an idea of the data, let’s visualize the calcium transients of the first two neurons for the first 100 seconds of the recording. Instead of creating a new IntervalSet object, we can use the method transients.get(0, 100) to get a restricted version of the Tsd object. Contrary to restrict, which takes an IntervalSet object as input, get can take start and end times directly as input and does not update the time support of the output Tsd object.

fig = plt.figure()
plt.plot(transients[:,0:2].get(0, 100))
plt.xlabel("Time (s)")
plt.ylabel("Fluorescence (a.u.)")

Figure check

Compute tuning curves#

Now we have

calcium transients
a behavioral feature (i.e. head-direction), We can compute tuning curves, i.e. the fluorescence of neurons as a function of head-direction. We want to know how the fluorescence of each neuron changes as a function of the head-direction of the animal. We can use the same function as before : nap.compute_tuning_curves. Don’t forget to give a name to the feature when calling the function (i.e. feature_names = ["angle"]).

tuning_curves = nap.compute_tuning_curves(
    data=, # The neural activity as a TsGroup
    features=, # Which feature? Here the head-direction of the animal
    bins=, # How many bins of feature space? Here 61 angular bins is a good numbers
    range=, # The min and max of the bin array
    feature_names =  # Let's give a name to our feature for better labelling of the output.
    )
tuning_curves

Visualize tuning curves#

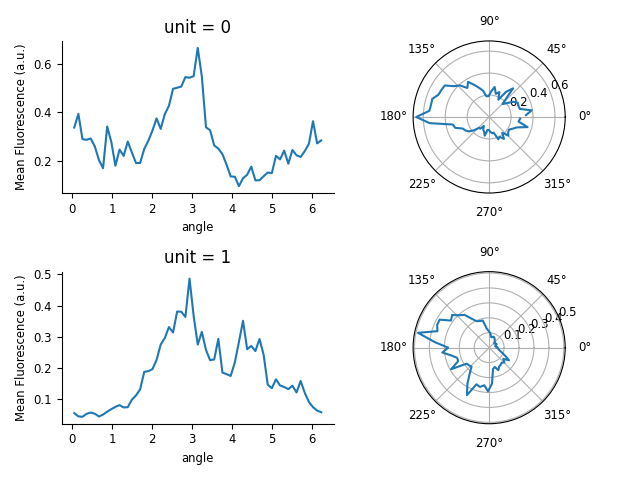

Let’s visualize the tuning curves of the first two neurons.

fig = plt.figure()
plt.subplot(221)
tuning_curves[0].plot()
plt.ylabel("Mean Fluorescence (a.u.)")
plt.subplot(222,projection='polar')
plt.plot(tuning_curves.angle, tuning_curves[0].values)
plt.subplot(223)
tuning_curves[1].plot()
plt.ylabel("Mean Fluorescence (a.u.)")
plt.subplot(224,projection='polar')
plt.plot(tuning_curves.angle, tuning_curves[1].values)
plt.tight_layout()

Figure check

Decode head-direction from neural activity#

Now that we have the tuning curves, we can use them to decode the head-direction of the animal from the neural activity. Pynapple provides two functions to do this: nap.decode_bayes for spike counts and nap.decode_template for event rates or continuous data. Since the data are calcium transients and not spike counts, we will use the template matching method.

Question: Can you decode the head-direction of the animal using the function nap.decode_template and call the variable decoded_angle?

We will us the epoch epochs = nap.IntervalSet([50, 150]) to restrict the decoding to the first 100 seconds of the recording.

epochs = nap.IntervalSet(start=50, end=150)
decoded_angle, dist = nap.decode_template(
    tuning_curves= , # The tuning curves as an xarray object
    data= , # The neural activity as a TsdFrame in this case
    bin_size= , # The bin size for decoding. Here I suggest 0.1 second
    metric= , # The metric to use to compare the neural activity to the tuning curves. Here I suggest "correlation"
    epochs=epochs # The epochs should correspond to when the neural activity is defined.
    )

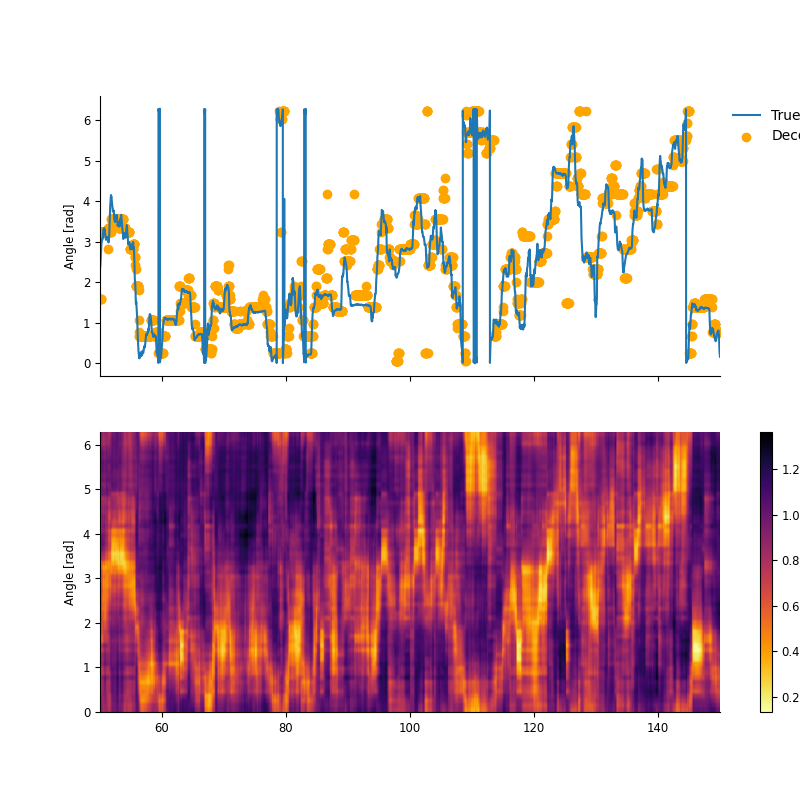

Let’s visualize the decoded head-direction of the animal for the first 100 seconds of the recording.

fig, (ax1, ax2) = plt.subplots(figsize=(8, 8), nrows=2, ncols=1, sharex=True)
ax1.plot(angle.restrict(epochs), label="True")
ax1.scatter(decoded_angle.times(), decoded_angle.values, label="Decoded", c="orange")
ax1.legend(frameon=False, bbox_to_anchor=(1.0, 1.0))
ax1.set_ylabel("Angle [rad]")

im = ax2.imshow(
    dist.values.T,
    aspect="auto",
    origin="lower",
    cmap="inferno_r",
    extent=(epochs.start[0], epochs.end[0], 0.0, 2*np.pi)
)
ax2.set_ylabel("Angle [rad]")
cbar_ax2 = fig.add_axes([0.95, ax2.get_position().y0, 0.015, ax2.get_position().height])
fig.colorbar(im, cax=cbar_ax2, label="Distance")

Figure check

The first panel shows the true head-direction of the animal and the decoded head-direction from neural activity. The second panel shows the distance between the neural activity and the tuning curves as a function of time and angle.

You can play with the metric parameters of the decoding function to see how it affects the decoding performance. Possible metrics are “euclidean”, “manhattan”, “correlation”, “jensenshannon” and “cosine”.

Part 2 : Modelling calcium imaging data with GLM#

Preprocessing the data#

To speed up the analysis, the following code computes a Rayleigh test to select only neurons that are significantly tuned to head-direction.

C = np.sum(tuning_curves.values * np.cos(tuning_curves.angle.values), axis=1) / np.sum(tuning_curves.values, axis=1)
S = np.sum(tuning_curves.values * np.sin(tuning_curves.angle.values), axis=1) / np.sum(tuning_curves.values, axis=1)
R = np.sqrt(C**2 + S**2)
Z = tuning_curves.shape[1] * R**2
p_value = np.exp(-Z)

tokeep_neurons = np.where(p_value < 0.01)[0]
transients = transients[:, tokeep_neurons]
tuning_curves = tuning_curves[tokeep_neurons]
print(f"Number of neurons after tuning selection: {transients.shape[1]}")

Finally, we sort the neurons based on their preferred head-direction.

pref_ang = tuning_curves.idxmax(dim="angle")
sort_idx = np.argsort(pref_ang.values)
transients = transients[:, sort_idx]
tuning_curves = tuning_curves[sort_idx]
pref_ang = pref_ang[sort_idx]
transients.set_info(pref_ang=pref_ang)
print(transients)

Basis functions for calcium data#

Here we can use the same RaisedCosineLogConv basis, but with a larger window size to capture the slower dynamics of calcium signals.

# define the basis for calcium data
calcium_window_size_sec = 0.5 # Window size in seconds
calcium_window_size = int(calcium_window_size_sec * transients.rate) # Convert window size to number of bins
calcium_basis = nmo.basis.RaisedCosineLogConv(
    n_basis_funcs= , # Number of basis functions
    window_size=calcium_window_size # Window size in bins
)
calcium_basis

Preparing the features#

We can convolve the calcium transients with the basis functions to get the feature matrix.

# convolve all the neurons
calcium_convolved = calcium_basis.compute_features( ) # Parameter is the calcium transients
print(f"Convolved calcium shape: {calcium_convolved.shape}")

Fitting a simple Gaussian Population GLM#

We can fit a PopulationGLM to the calcium data using a Gaussian observation model, which is more appropriate for continuous-valued data.

Similar to before, we will create a train-test split using the first and second half of the data.

duration = calcium_convolved.time_support.tot_length("s")
start = calcium_convolved.time_support["start"]
end = calcium_convolved.time_support["end"]
training_ep = nap.IntervalSet(start, start + duration / 2)
testing_ep = nap.IntervalSet(start + duration / 2, end)

Let’s fit the PopulationGLM using the Gaussian observation model, Ridge regularization, and the LBFGS solver.

calcium_model = nmo.glm.PopulationGLM(
    observation_model= , # Observation model type
    regularizer= , # Regularizer type
    solver_name= , # Solver name
    regularizer_strength= , # Regularization strength
    solver_kwargs={"maxiter": 5000}
    ).fit( , ) # Parameters are the convolved feature matrix and the calcium transients during training epoch
print(f"Calcium model coefficients shape: {calcium_model.coef_.shape}")

Predicting and visualizing the results#

We can predict the calcium signals using the fitted model during the test epoch and visualize the results.

calcium_predicted = calcium_model.predict( ) # Parameter is the convolved feature matrix restricted during testing epoch

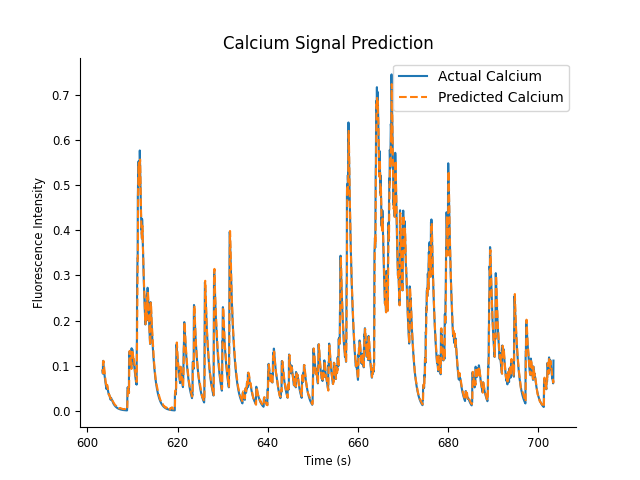

We can visualize the predicted calcium signals alongside the actual signals to assess the model’s performance.

ep_to_plot = nap.IntervalSet(testing_ep.start[0], testing_ep.start[0] + 100)  # Plot first 10 seconds of test epoch

fig = plt.figure()
plt.plot(transients.restrict(ep_to_plot)[:,0], label="Actual Calcium")
plt.plot(calcium_predicted.restrict(ep_to_plot)[:,0], '--', label="Predicted Calcium")
plt.legend()
plt.title("Calcium Signal Prediction")
plt.xlabel("Time (s)")
plt.ylabel("Fluorescence Intensity")

Figure check

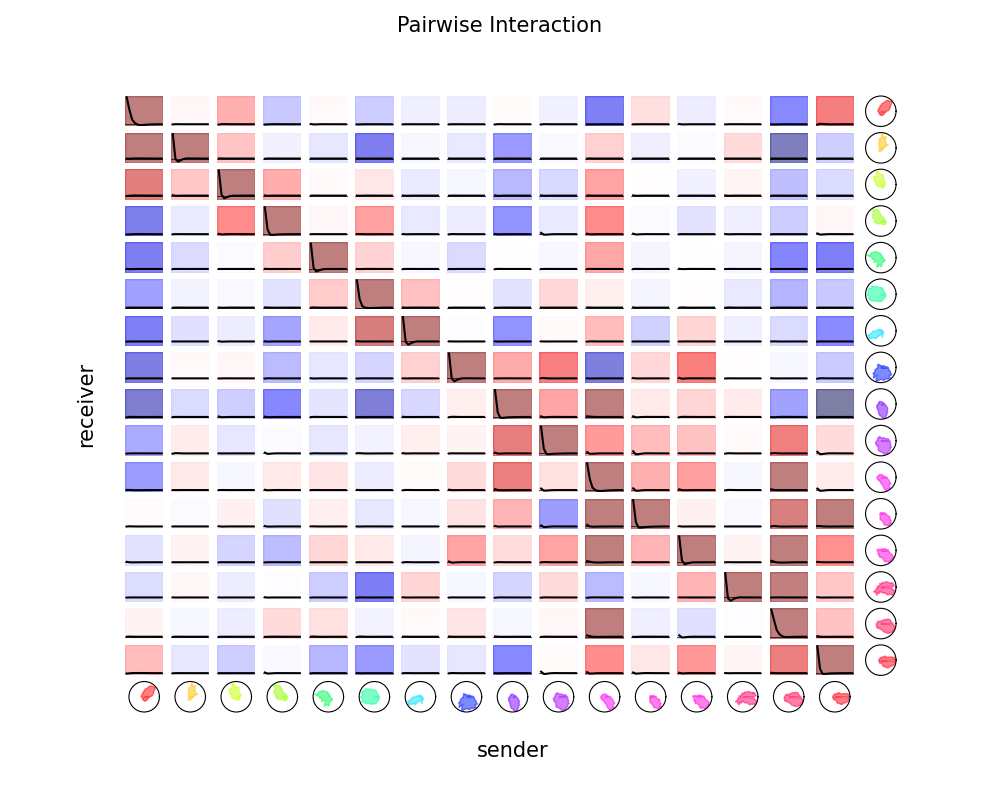

Similar to the spike data, we can extract and visualize the coupling filters between neurons based on the fitted model.

# split the coefficient vector along the feature axis (axis=0)
calcium_weights_dict = calcium_basis.split_by_feature(calcium_model.coef_, axis=0)
# The output is a dict with key the basis label,
# and value the reshaped coefficients
calcium_weights = calcium_weights_dict["RaisedCosineLogConv"]
# reconstruct the coupling filters
time, basis_kernels = calcium_basis.evaluate_on_grid(calcium_window_size)
calcium_responses = np.einsum("jki,tk->ijt", calcium_weights, basis_kernels)
print(calcium_responses.shape)

fig = workshop_utils.plot_coupling_filters(calcium_responses, tuning_curves)

Figure check

These coupling filters represent the functional relationships between neurons based on their calcium signal. We can see that the self-coupling dominates the coupling filters, which is expected due to the slow dynamics of calcium signals.

Fitting a population GLM with masking (no self-coupling)#

To prevent self-coupling, we can create a feature mask that blocks self-connections for each neuron. This is done by creating a mask matrix where the diagonal elements (self-connections) are set to zero, and all other elements are set to one. We then repeat this mask for each basis function to create the final feature mask.

n_neurons = transients.shape[1]
mask = np.ones((n_neurons, n_neurons)) # Create a square matrix of ones equal to the number of neurons
mask = mask - np.eye(n_neurons) # Subtract the identity matrix to set diagonal elements to zero
mask = np.repeat(mask, calcium_basis.n_basis_funcs, axis=0) # Repeat for each basis function to create final feature mask

fig = plt.figure()
plt.imshow(mask, cmap="gray", aspect="auto", interpolation='none')
plt.xticks(ticks=np.arange(n_neurons), labels=np.arange(n_neurons))
plt.yticks(ticks=np.arange(0, n_neurons * calcium_basis.n_basis_funcs, calcium_basis.n_basis_funcs),
           labels=np.arange(n_neurons))
plt.title("Feature Mask (No Self-Coupling)")
plt.xlabel("Neurons")
plt.ylabel("Neurons x Basis Functions")
plt.colorbar(label="Mask Value")

Now we can fit the PopulationGLM again using this feature mask to prevent self-coupling.

calcium_model = nmo.glm.PopulationGLM(
    observation_model= , # Observation model type
    regularizer= , # Regularizer type
    solver_name= , # Solver name
    regularizer_strength= , # Regularization strength
    feature_mask= , # The feature mask to prevent self-coupling
    solver_kwargs={"maxiter": 5000}
    ).fit( , ) # Parameters are the convolved feature matrix and the calcium transients during training epoch
print(f"Calcium model coefficients shape: {calcium_model.coef_.shape}")

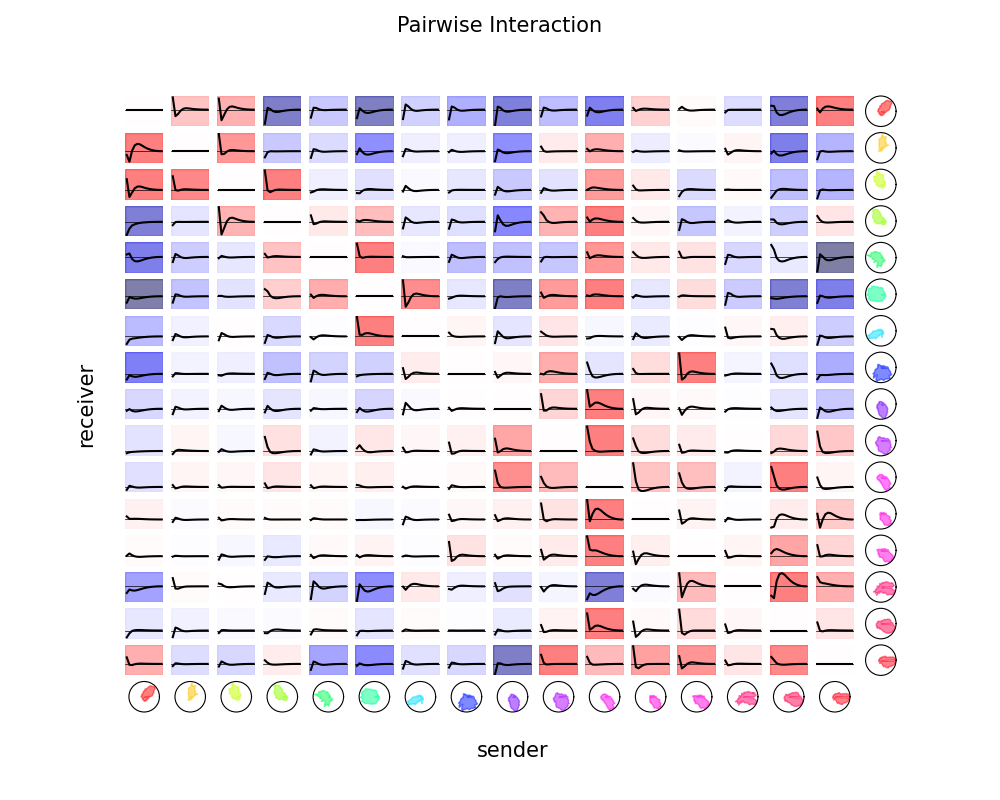

Visualizing the coupling filters without self-coupling#

We can extract and visualize the coupling filters again to see the effect of removing self-coupling.

# split the coefficient vector along the feature axis (axis=0)
calcium_weights_dict = calcium_basis.split_by_feature(calcium_model.coef_, axis=0)
# The output is a dict with key the basis label,
# and value the reshaped coefficients
calcium_weights = calcium_weights_dict["RaisedCosineLogConv"]
# reconstruct the coupling filters
time, basis_kernels = calcium_basis.evaluate_on_grid(calcium_window_size)
calcium_responses_noself = np.einsum("jki,tk->ijt", calcium_weights, basis_kernels)
print(calcium_responses_noself.shape)

fig = workshop_utils.plot_coupling_filters(calcium_responses_noself, tuning_curves)

Figure check

Conclusion#

The end of this group project. You can explore further by trying different basis functions, regularization strengths, or observation models. You can also try to incorporate external covariates, such as the head-direction signal, into the model. You can try to downsample the data to see how it affects the model fitting and predictions (i.e. check bin_average in pynapple to downsample the transients).
