NeMoS Advanced: Cross-Validation and Model Selection#

Learning Objectives#

In this tutorial we will keep working on the hippocampal place field recordings with the goal of learning how to combine NeMoS and scikit-learn to perform cross-validation and model selection. In particular we will:

Learn how to use NeMoS objects with scikit-learn for cross-validation
Learn how to use NeMoS objects with scikit-learn pipelines
Learn how to use cross-validation to perform model and feature selection. More specifically, we will compare models including position and speed as predictors with model including only speed or only position.

Pre-Processing#

Let’s first load and wrangle the data with pynapple and NeMoS. You can run the following cells for preparing the variables that we are going to use in the notebook and recapitulate the content of this dataset with a few visualizations.

import workshop_utils
import matplotlib.pyplot as plt
import numpy as np
import pandas as pd
import pynapple as nap

import nemos as nmo

# some helper plotting functions
from nemos import _documentation_utils as doc_plots

# configure plots some
plt.style.use(nmo.styles.plot_style)

import workshop_utils

from sklearn import model_selection
from sklearn import pipeline

# shut down jax to numpy conversion warning
nap.nap_config.suppress_conversion_warnings = True

WARNING:2026-02-05 17:43:51,900:jax._src.xla_bridge:876: An NVIDIA GPU may be present on this machine, but a CUDA-enabled jaxlib is not installed. Falling back to cpu.

- Load the data using pynapple.

path = workshop_utils.fetch_data("Achilles_10252013_EEG.nwb")
data = nap.load_file(path)
data

Achilles_10252013_EEG
┍━━━━━━━━━━━━━┯━━━━━━━━━━━━━┑
│ Keys        │ Type        │
┝━━━━━━━━━━━━━┿━━━━━━━━━━━━━┥
│ units       │ TsGroup     │
│ rem         │ IntervalSet │
│ nrem        │ IntervalSet │
│ forward_ep  │ IntervalSet │
│ eeg         │ TsdFrame    │
│ theta_phase │ Tsd         │
│ position    │ Tsd         │
┕━━━━━━━━━━━━━┷━━━━━━━━━━━━━┙

- Extract the spike times and mouse position.

spikes = data["units"]
position = data["position"]

For today, we’re only going to focus on the times when the animal was traversing the linear track. This is a pynapple IntervalSet, so we can use it to restrict our other variables:

Restrict data to when animal was traversing the linear track.

position = position.restrict(data["forward_ep"])
spikes = spikes.restrict(data["forward_ep"])

The recording contains both inhibitory and excitatory neurons. Here we will focus of the excitatory cells with firing above 0.3 Hz.

Restrict neurons to only excitatory neurons, discarding neurons with a low-firing rate.

spikes = spikes.getby_category("cell_type")["pE"]
spikes = spikes.getby_threshold("rate", 0.3)

Place fields#

By plotting the neuronal firing rate as a function of position, we can see that these neurons are all tuned for position: they fire in a specific location on the track.

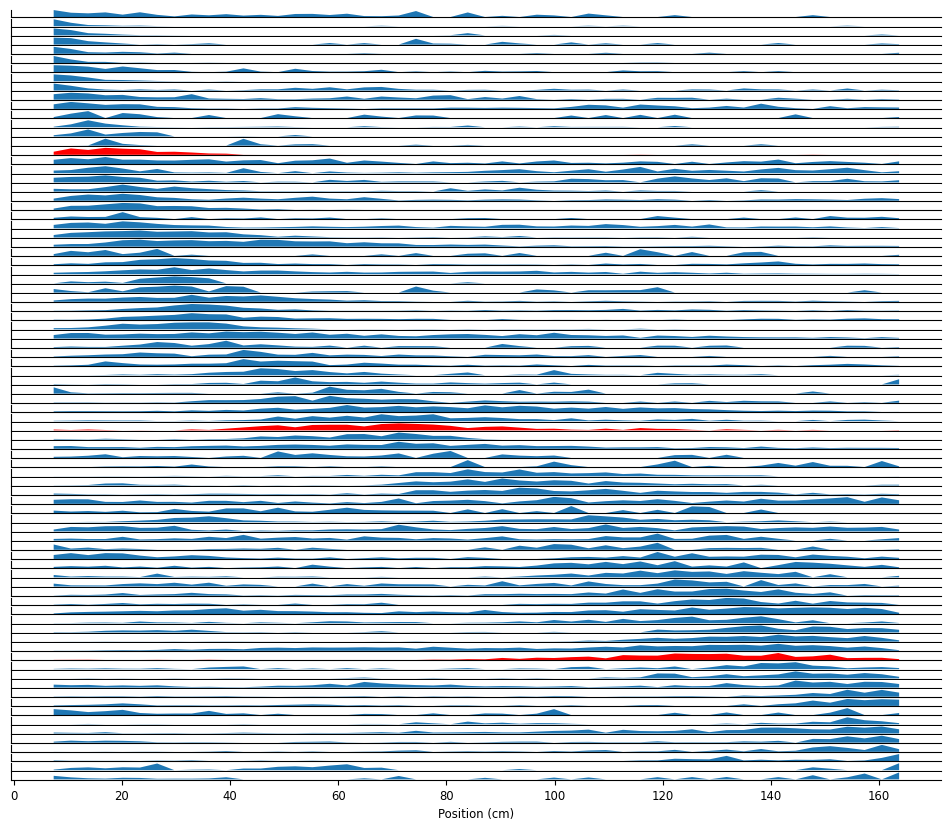

Visualize the place fields: neuronal firing rate as a function of position.

place_fields = nap.compute_tuning_curves(spikes, position, bins=50, epochs=position.time_support, feature_names=["distance"])
workshop_utils.plot_place_fields(place_fields)

../../_images/1e40013987f902a1c112be3b8bdebc606a85b56ca230c336b3a3564099e9e4de.png

To decrease computation time, we’re going to spend the rest of the notebook focusing on the neurons highlighted above. We’re also going to bin spikes at 100 Hz and up-sample the position to match that temporal resolution.

For speed, we’re only going to investigate the three neurons highlighted above.
Bin spikes to counts at 100 Hz.
Interpolate position to match spike resolution.

neurons = [82, 92, 220]
place_fields = place_fields.sel(unit=neurons)
spikes = spikes[neurons]
bin_size = .01
count = spikes.count(bin_size, ep=position.time_support)
position = position.interpolate(count, ep=count.time_support)
print(count.shape)
print(position.shape)

(19237, 3)
(19237,)

Extract Speed per Epoch#

In the next block, we compute the speed of the animal for each epoch (i.e. crossing of the linear track) by taking the temporal derivative of the position. You can use the pynapple method derivative that computes an approximate derivative.

Compute the animal’s speed.
Visualize tuning curves to speed and position.

speed = position.derivative()
print(speed.shape)

# utility function to visualize predictions
tc_speed = nap.compute_tuning_curves(spikes, speed, bins=20, epochs=speed.time_support, feature_names=["speed"])
fig = workshop_utils.plot_position_speed(position, speed, place_fields, tc_speed, neurons);

def visualize_model_predictions(glm, X):
    # predict the model's firing rate
    predicted_rate = glm.predict(X) / bin_size

    # compute the position and speed tuning curves using the predicted firing rate.
    glm_pos = nap.compute_tuning_curves(predicted_rate, position, bins=50, epochs=position.time_support, feature_names=["position"])
    glm_speed = nap.compute_tuning_curves(predicted_rate, speed, bins=30, epochs=position.time_support, feature_names=["speed"])

    workshop_utils.plot_position_speed_tuning(place_fields, tc_speed, glm_pos, glm_speed);

(19237,)

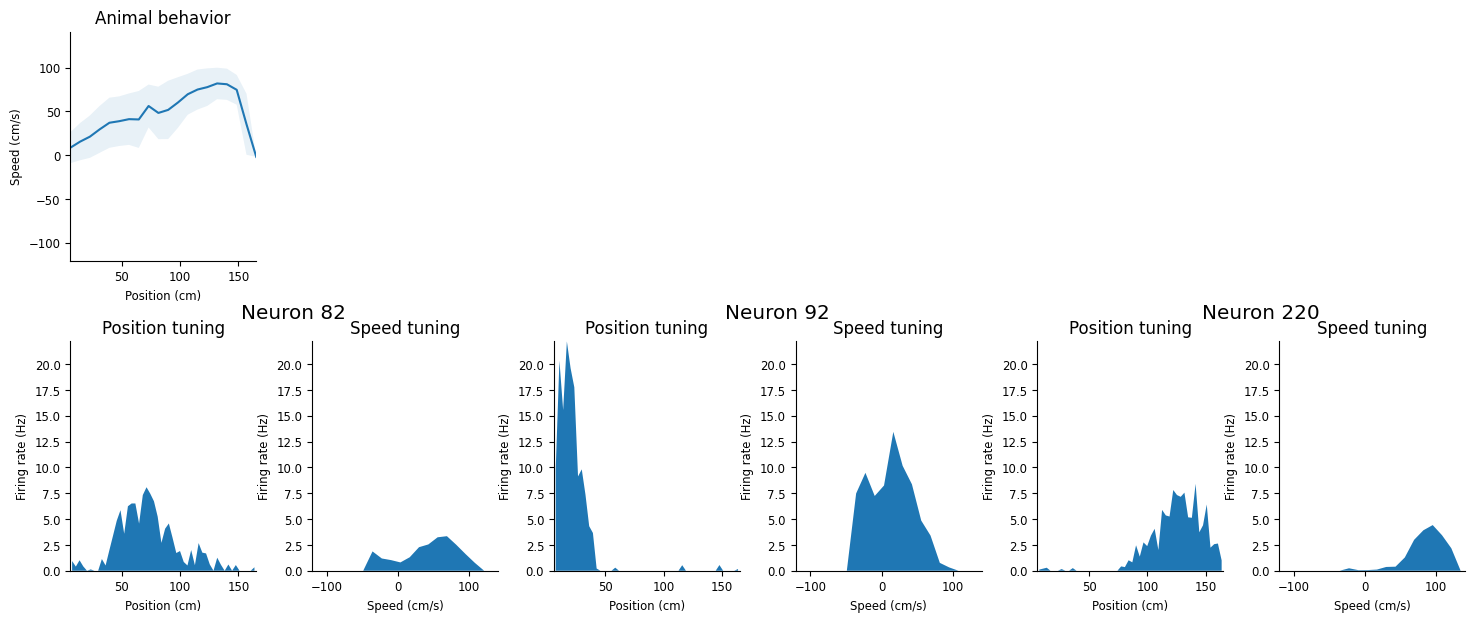

../../_images/51c62a06678b17a1e032dc77371a84274c840b39799a23e3011189d532a20895.png

Define 1D NeMoS Bases#

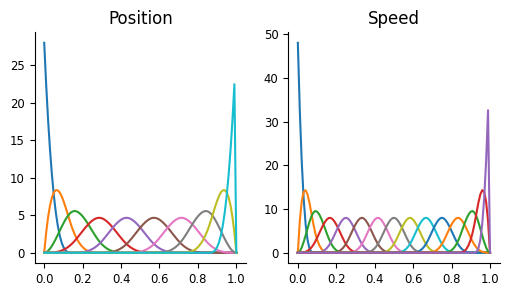

Define the position and speed bases, and visualize them.

position_basis = nmo.basis.MSplineEval(n_basis_funcs=10, label="position")
speed_basis = nmo.basis.MSplineEval(n_basis_funcs=15, label="speed")
workshop_utils.plot_pos_speed_bases(position_basis, speed_basis);

../../_images/8b8a4aa6bf5fb98001cf1f12124628c394f743bb140bff25e264da38d1465788.png

Basis Composition#

The first new concept we will introduce will be that of basis composition. NeMoS basis can be composed using the “+” (and “*”, see NeMoS docs of more info) operator, to define more complex predictor.

Adding two 1D basis, will result in a 2D additive basis. The compute_features of the additive basis requires 2 inputs, and the output will be the concatenation of the design matrices of the basis components.

Adding the position and speed bases together defines a 2D basis.
Call compute_features to define a design matrix that concatenates both features.

```{code-cell} ipython3 # add the bases basis = # get the design matrix X = ```

basis = position_basis + speed_basis

X = basis.compute_features(position, speed)
X_numpy = np.concatenate(
    [
        position_basis.compute_features(position),
        speed_basis.compute_features(speed),
    ],
    axis=1
)

print("Are the design matrices equivalent?", np.all(X.d == X_numpy.d))

Are the design matrices equivalent? True

Scikit-learn#

How to know when to regularize?#

In the head direction project, we fit the all-to-all connectivity of the head-tuning dataset using the Ridge regularizer, and we learned that regularization can combat overfitting. What we didn’t show is how to choose a proper regularizer. Generally, too much regularization leads to underfitting, i.e. the model is too simple and doesn’t capture the neural variability well. To little regularization may overfit, especially when we have a large number of parameters, i.e. out model will capture both signal and noise. This is what we saw in the head direction notebook when we used the raw spike history as predictor.

What we are looking for is a regularization strength that balances out the bias towards simpler models with the variance necessary to explain the data. However, how do we know how much we should regularize? One thing we can do is use cross-validation to see whether model performance on unseen data improves with regularization (behind the scenes, this is what we did!). We’ll walk through how to do that now.

Instead of implementing our own cross-validation machinery, the developers of nemos decided that we should write the package to be compliant with scikit-learn, the canonical machine learning python library. Our models are all what scikit-learn calls “estimators”, which means they have .fit, .score. and .predict methods. Thus, we can use them with scikit-learn’s objects out of the box.

We’re going to use scikit-learn’s GridSearchCV object, which performs a cross-validated grid search, as Edoardo explained in his presentation.

This object requires an estimator, our glm object here, and param_grid, a dictionary defining what to check. For now, let’s just compare Ridge regularization at two different strengths:

How do we decide when to use regularization?
Cross-validation allows you to fairly compare different models on the same dataset.
NeMoS makes use of scikit-learn, the standard machine learning library in python.
Define parameter grid to search over.
Anything not specified in grid will be kept constant.

```{code-cell} ipython3 # configurations of the PopulationGLM solver_kwargs={"tol": 1e-12} solver_name="LBFGS" # define a Ridge regularized PopulationGLM glm = ```

# define a Ridge PopulationGLM
glm = nmo.glm.PopulationGLM(
    regularizer="Ridge",
    solver_kwargs={"tol": 1e-12},
    solver_name="LBFGS",
)
param_grid = {
    "regularizer_strength": [0.0001, 1.],
}

Initialize scikit-learn’s model_selection.GridSearchCV object.

```{code-cell} ipython3 cv_folds = 5 cv = cv ```

cv_folds = 5
cv = model_selection.GridSearchCV(glm, param_grid, cv=cv_folds)
cv

GridSearchCV(cv=5,
             estimator=PopulationGLM(inverse_link_function=<function exp at 0x7fd3d91c99e0>, observation_model=PoissonObservations(), regularizer=Ridge(), regularizer_strength=1.0, solver_kwargs={'tol': 1e-12}, solver_name='LBFGS'),
             param_grid={'regularizer_strength': [0.0001, 1.0]})

In a Jupyter environment, please rerun this cell to show the HTML representation or trust the notebook.
On GitHub, the HTML representation is unable to render, please try loading this page with nbviewer.org.

This will take a bit to run, because we’re fitting the model many times!

We interact with this in a very similar way to the glm object.
In particular, call fit with same arguments:

cv.fit(X, count)

/home/agent/workspace/rorse_ccn-software-feb-2026_main/.venv/lib/python3.12/site-packages/nemos/glm/glm.py:728: RuntimeWarning: The fit did not converge. Consider the following:
1) Enable float64 with ``jax.config.update('jax_enable_x64', True)``
2) Increase the max number of iterations or increase tolerance (if reasonable). These parameters can be specified by providing a ``solver_kwargs`` dictionary. For the available options see the ``self.solver.__init__`` docstrings.
  warnings.warn(

/home/agent/workspace/rorse_ccn-software-feb-2026_main/.venv/lib/python3.12/site-packages/nemos/glm/glm.py:728: RuntimeWarning: The fit did not converge. Consider the following:
1) Enable float64 with ``jax.config.update('jax_enable_x64', True)``
2) Increase the max number of iterations or increase tolerance (if reasonable). These parameters can be specified by providing a ``solver_kwargs`` dictionary. For the available options see the ``self.solver.__init__`` docstrings.
  warnings.warn(

/home/agent/workspace/rorse_ccn-software-feb-2026_main/.venv/lib/python3.12/site-packages/nemos/glm/glm.py:728: RuntimeWarning: The fit did not converge. Consider the following:
1) Enable float64 with ``jax.config.update('jax_enable_x64', True)``
2) Increase the max number of iterations or increase tolerance (if reasonable). These parameters can be specified by providing a ``solver_kwargs`` dictionary. For the available options see the ``self.solver.__init__`` docstrings.
  warnings.warn(

GridSearchCV(cv=5,
             estimator=PopulationGLM(inverse_link_function=<function exp at 0x7fd3d91c99e0>, observation_model=PoissonObservations(), regularizer=Ridge(), regularizer_strength=1.0, solver_kwargs={'tol': 1e-12}, solver_name='LBFGS'),
             param_grid={'regularizer_strength': [0.0001, 1.0]})

In a Jupyter environment, please rerun this cell to show the HTML representation or trust the notebook.
On GitHub, the HTML representation is unable to render, please try loading this page with nbviewer.org.

Let’s investigate results:

Cross-validation results are stored in a dictionary attribute called cv_results_, which contains a lot of info. Let’s convert that to a pandas dataframe for readability,

pd.DataFrame(cv.cv_results_)

	mean_fit_time	std_fit_time	mean_score_time	std_score_time	param_regularizer_strength	params	split0_test_score	split1_test_score	split2_test_score	split3_test_score	split4_test_score	mean_test_score	std_test_score	rank_test_score
0	1.759626	0.687586	0.363913	0.440074	0.0001	{'regularizer_strength': 0.0001}	-0.127700	-0.118069	-0.161886	-0.131911	-0.125092	-0.132931	0.015160	1
1	2.978946	2.513113	0.006137	0.001482	1.0000	{'regularizer_strength': 1.0}	-0.137128	-0.128441	-0.173226	-0.138692	-0.131281	-0.141753	0.016175	2

The most informative for us is the 'mean_test_score' key, which shows the average of glm.score on each test-fold. Thus, higher is better, and we can see that the model performs better with lower regularization strength.

Find the best regularization strength!

As an exercise, spend 10 minutes trying to find the best regularization strength!

You should use the glm model we defined in this section.
You will need to redefine the param_grid dictionary, selecting different values for "regularizer_strength":

param_grid = {
    "regularizer_strength": ...,
}

After defining param_grid, reinitialize cv (you can do so with the same arguments).
Then call cv.fit and re-run pd.DataFrame(cv.cv_results_) to summarize the results.

Who can find the best regularization strength?

If you finish early, try out different regularizers and try to find the best regularization strength for each of them.

Select basis#

We can do something similar to select the basis. In the above example, I just told you which basis function to use and how many of each. But, in general, you want to select those in a reasonable manner. Cross-validation to the rescue!

Unlike the glm objects, our basis objects are not scikit-learn compatible right out of the box. However, they can be made compatible by using the .to_transformer() method (or, equivalently, by using the TransformerBasis class)

You can (and should) do something similar to determine how many basis functions you need for each input.
NeMoS basis objects are not scikit-learn-compatible right out of the box.
But we have provided a simple method to make them so:

```{code-cell} ipython3 # convert basis to transformer position_basis = position_basis ```

position_basis = nmo.basis.MSplineEval(n_basis_funcs=10, label="position").to_transformer()
# or equivalently:
position_basis = nmo.basis.TransformerBasis(nmo.basis.MSplineEval(n_basis_funcs=10, label="position"))
position_basis

'position': MSplineEval(n_basis_funcs=10, order=4)

In a Jupyter environment, please rerun this cell to show the HTML representation or trust the notebook.
On GitHub, the HTML representation is unable to render, please try loading this page with nbviewer.org.

This gives the basis object the transform method, which is equivalent to compute_features. However, transformers have some limits:

This gives the basis object the transform method, which is equivalent to compute_features.
However, transformers have some limits:

position_basis.transform(position)

---------------------------------------------------------------------------
ValueError                                Traceback (most recent call last)
Cell In[17], line 1
----> 1 position_basis.transform(position)

File ~/.venv/lib/python3.12/site-packages/nemos/basis/_transformer_basis.py:247, in TransformerBasis.transform(self, X, y)
    210 """
    211 Transform the data using the fitted basis functions.
    212
   (...)    244 >>> feature_transformed = transformer.transform(X)
    245 """
    246 self._check_initialized(self.basis)
--> 247 self._check_input(X, y)
    248 # transpose does not work with pynapple
    249 # can't use func(*X.T) to unwrap
    250 return self.basis.compute_features(*self._unpack_inputs(X))

File ~/.venv/lib/python3.12/site-packages/nemos/basis/_transformer_basis.py:554, in TransformerBasis._check_input(self, X, y)
    551     raise ValueError("The input must be a 2-dimensional array.")
    553 elif ndim != 2:
--> 554     raise ValueError(
    555         f"X must be 2-dimensional, shape (n_samples, n_features). The provided X has shape {X.shape} instead."
    556     )
    558 if X.shape[1] != sum(self._input_shape_product):
    559     raise ValueError(
    560         f"Input mismatch: expected {sum(self._input_shape_product)} inputs, but got {X.shape[1]} "
    561         f"columns in X.\nTo modify the required number of inputs, call `set_input_shape` before using "
    562         f"`fit` or `fit_transform`."
    563     )

ValueError: X must be 2-dimensional, shape (n_samples, n_features). The provided X has shape (19237,) instead.

Transformers only accept 2d inputs, whereas nemos basis objects can accept inputs of any dimensionality.
In order to use a basis as a transformer, you’ll need to concatenate all your input in a single 2D array.

Transformers only accept 2d inputs, whereas nemos basis objects can accept inputs of any dimensionality.

position_basis.transform(position[:, np.newaxis])

Time (s)                0           1            2            3    4  ...
---------------  --------  ----------  -----------  -----------  ---  -----
603802655  0.162854  0.0063002   5.33261e-05  1.12053e-07    0  ...
613802655  0.159556  0.00790116  8.52389e-05  2.27854e-07    0  ...
623802655  0.156303  0.00946868  0.000124421  4.04332e-07    0  ...
633802655  0.151106  0.0119478   0.000203448  8.54051e-07    0  ...
643802655  0.145902  0.014398    0.000303689  1.57397e-06    0  ...
653802655  0.141967  0.0162281   0.000394145  2.34623e-06    0  ...
663802655  0.139957  0.0171555   0.000445419  2.8306e-06     0  ...
...                                                                   ...
332682821  0         0           0            0              0  ...
342682821  0         0           0            0              0  ...
352682821  0         0           0            0              0  ...
362682821  0         0           0            0              0  ...
372682821  0         0           0            0              0  ...
382682821  0         0           0            0              0  ...
392682821  0         0           0            0              0  ...
dtype: float32, shape: (19237, 10)

Let’s now create the composite basis for speed and position.

```{code-cell} ipython3 # redefine the basis with label="position" position_basis = # redefine the basis with label="speed" speed_basis = nmo.basis.MSplineEval(n_basis_funcs=15, label="speed") basis = position_basis + speed_basis # convert to transformer basis = basis ```

position_basis = nmo.basis.MSplineEval(n_basis_funcs=10, label="position")
speed_basis = nmo.basis.MSplineEval(n_basis_funcs=15, label="speed")
basis = position_basis + speed_basis
basis = basis.to_transformer()
basis

'(position + speed)': AdditiveBasis(
    basis1='position': MSplineEval(n_basis_funcs=10, order=4),
    basis2='speed': MSplineEval(n_basis_funcs=15, order=4),
)

In a Jupyter environment, please rerun this cell to show the HTML representation or trust the notebook.
On GitHub, the HTML representation is unable to render, please try loading this page with nbviewer.org.

Let’s create a single TsdFrame to hold all our inputs:

Stack position and speed in a single TsdFrame to hold all our inputs:

transformer_input = nap.TsdFrame(
    t=position.t,
    d=np.stack([position, speed]).T,
    time_support=position.time_support,
    columns=["position", "speed"],
)

Pass this input to our transformed additive basis.

Our new additive transformer basis can then take these behavioral inputs and turn them into the model’s design matrix.

basis.transform(transformer_input)

Time (s)                0           1            2            3    4  ...
---------------  --------  ----------  -----------  -----------  ---  -----
603802655  0.162854  0.0063002   5.33261e-05  1.12053e-07    0  ...
613802655  0.159556  0.00790116  8.52389e-05  2.27854e-07    0  ...
623802655  0.156303  0.00946868  0.000124421  4.04332e-07    0  ...
633802655  0.151106  0.0119478   0.000203448  8.54051e-07    0  ...
643802655  0.145902  0.014398    0.000303689  1.57397e-06    0  ...
653802655  0.141967  0.0162281   0.000394145  2.34623e-06    0  ...
663802655  0.139957  0.0171555   0.000445419  2.8306e-06     0  ...
...                                                                   ...
332682821  0         0           0            0              0  ...
342682821  0         0           0            0              0  ...
352682821  0         0           0            0              0  ...
362682821  0         0           0            0              0  ...
372682821  0         0           0            0              0  ...
382682821  0         0           0            0              0  ...
392682821  0         0           0            0              0  ...
dtype: float32, shape: (19237, 25)

Pipelines#

We need one more step: scikit-learn cross-validation operates on an estimator, like our GLMs. if we want to cross-validate over the basis or its features, we need to combine our transformer basis with the estimator into a single estimator object. Luckily, scikit-learn provides tools for this: pipelines.

Pipelines are objects that accept a series of (0 or more) transformers, culminating in a final estimator. This is defined as a list of tuples, with each tuple containing a human-readable label and the object itself:

If we want to cross-validate over the basis, we need more one more step: combining the basis and the GLM into a single scikit-learn estimator.
Pipelines to the rescue!

```{code-cell} ipython3 # set the reg strength to the optimal glm = # pipe the basis and the glm pipe = pipeline.Pipeline( pipe ```

# set the reg strength to the optimal
glm = nmo.glm.PopulationGLM(solver_name="LBFGS", solver_kwargs={"tol": 10**-12})
pipe = pipeline.Pipeline([
    ("basis", basis),
    ("glm", glm)
])
pipe

Pipeline(steps=[('basis',
                 Transformer('(position + speed)': AdditiveBasis(
    basis1='position': MSplineEval(n_basis_funcs=10, order=4),
    basis2='speed': MSplineEval(n_basis_funcs=15, order=4),
))),
                ('glm',
                 PopulationGLM(inverse_link_function=<function exp at 0x7fd3d91c99e0>, observation_model=PoissonObservations(), regularizer=UnRegularized(), solver_kwargs={'tol': 1e-12}, solver_name='LBFGS'))])

In a Jupyter environment, please rerun this cell to show the HTML representation or trust the notebook.
On GitHub, the HTML representation is unable to render, please try loading this page with nbviewer.org.

This pipeline object allows us to e.g., call fit using the initial input:

Pipeline runs basis.transform, then passes that output to glm, so we can do everything in a single line:

pipe.fit(transformer_input, count)

/home/agent/workspace/rorse_ccn-software-feb-2026_main/.venv/lib/python3.12/site-packages/nemos/glm/glm.py:728: RuntimeWarning: The fit did not converge. Consider the following:
1) Enable float64 with ``jax.config.update('jax_enable_x64', True)``
2) Increase the max number of iterations or increase tolerance (if reasonable). These parameters can be specified by providing a ``solver_kwargs`` dictionary. For the available options see the ``self.solver.__init__`` docstrings.
  warnings.warn(

Pipeline(steps=[('basis',
                 Transformer('(position + speed)': AdditiveBasis(
    basis1='position': MSplineEval(n_basis_funcs=10, order=4),
    basis2='speed': MSplineEval(n_basis_funcs=15, order=4),
))),
                ('glm',
                 PopulationGLM(inverse_link_function=<function exp at 0x7fd3d91c99e0>, observation_model=PoissonObservations(), regularizer=UnRegularized(), solver_kwargs={'tol': 1e-12}, solver_name='LBFGS'))])

In a Jupyter environment, please rerun this cell to show the HTML representation or trust the notebook.
On GitHub, the HTML representation is unable to render, please try loading this page with nbviewer.org.

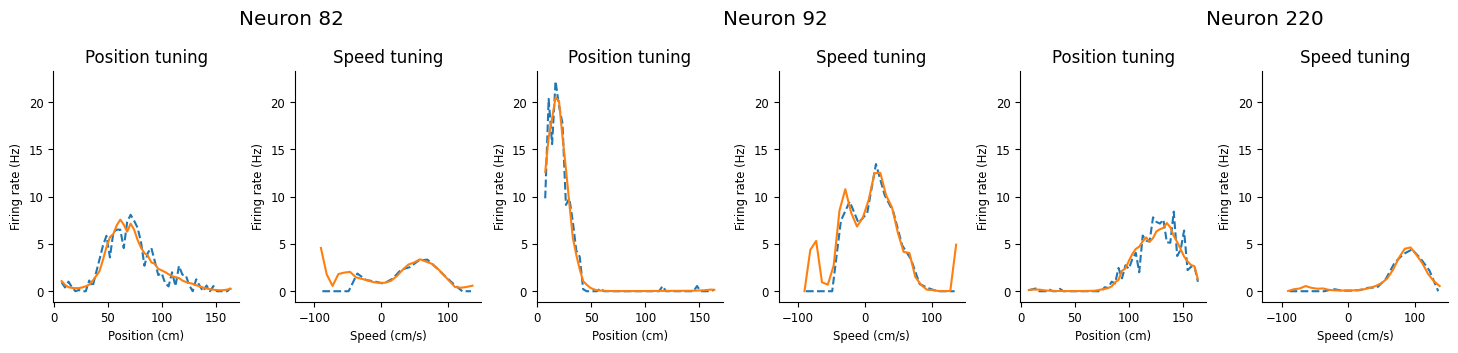

We then visualize the predictions the same as before, using pipe instead of glm.

Visualize model predictions!

visualize_model_predictions(pipe, transformer_input)

../../_images/211523afe1205dcc08f7a1ac61ce4cd7944e362d6e5772142ce7c4c6c034b9b7.png

Cross-validating on the basis#

Now that we have our pipeline estimator, we can cross-validate on any of its parameters!

pipe.steps

[('basis',
  Transformer('(position + speed)': AdditiveBasis(
      basis1='position': MSplineEval(n_basis_funcs=10, order=4),
      basis2='speed': MSplineEval(n_basis_funcs=15, order=4),
  ))),
 ('glm',
  PopulationGLM(
      observation_model=PoissonObservations(),
      inverse_link_function=exp,
      regularizer=UnRegularized(),
      solver_name='LBFGS',
      solver_kwargs={'tol': 1e-12}
  ))]

Let’s cross-validate on the number of basis functions for the position basis, and the identity of the basis for the speed. That is:

Let’s cross-validate on:

The number of the basis functions of the position basis
The functional form of the basis for speed
Let’s retrieve the those attributes from the pipeline

# the label of the pipeline step retrieves the basis
print(pipe["basis"])

# the position basis can by retreived by its label
print("\n", pipe["basis"]["position"])

# the n_basis_funcs is an attribute
print("\n", pipe["basis"]["position"].n_basis_funcs)

# with the same syntax we can retreive the speed basis
print("\n", pipe["basis"]["speed"])

Transformer('(position + speed)': AdditiveBasis(
    basis1='position': MSplineEval(n_basis_funcs=10, order=4),
    basis2='speed': MSplineEval(n_basis_funcs=15, order=4),
))

 Transformer('position': MSplineEval(n_basis_funcs=10, order=4))

 10

 Transformer('speed': MSplineEval(n_basis_funcs=15, order=4))

For scikit-learn parameter grids, we use __ to stand in for .:

Construct param_grid, using __ to stand in for .
In scikit-learn pipelines, we access nested parameters using double underscores:
- pipe["basis"]["position"].n_basis_funcs - normal Python syntax
- "basis__position__n_basis_funcs" - scikit-learn parameter grid syntax

```{code-cell} ipython3 param_grid = ```

param_grid = {
    "basis__position__n_basis_funcs": [5, 10, 20],
    "basis__speed": [nmo.basis.MSplineEval(15),
                      nmo.basis.BSplineEval(15),
                      nmo.basis.RaisedCosineLinearEval(15)],
}

Cross-validate as before:

```{code-cell} ipython3 # define the grid search and fit cv = ```

cv = model_selection.GridSearchCV(pipe, param_grid, cv=cv_folds)
cv.fit(transformer_input, count)

/home/agent/workspace/rorse_ccn-software-feb-2026_main/.venv/lib/python3.12/site-packages/nemos/glm/glm.py:728: RuntimeWarning: The fit did not converge. Consider the following:
1) Enable float64 with ``jax.config.update('jax_enable_x64', True)``
2) Increase the max number of iterations or increase tolerance (if reasonable). These parameters can be specified by providing a ``solver_kwargs`` dictionary. For the available options see the ``self.solver.__init__`` docstrings.
  warnings.warn(

/home/agent/workspace/rorse_ccn-software-feb-2026_main/.venv/lib/python3.12/site-packages/nemos/glm/glm.py:728: RuntimeWarning: The fit did not converge. Consider the following:
1) Enable float64 with ``jax.config.update('jax_enable_x64', True)``
2) Increase the max number of iterations or increase tolerance (if reasonable). These parameters can be specified by providing a ``solver_kwargs`` dictionary. For the available options see the ``self.solver.__init__`` docstrings.
  warnings.warn(

/home/agent/workspace/rorse_ccn-software-feb-2026_main/.venv/lib/python3.12/site-packages/nemos/glm/glm.py:728: RuntimeWarning: The fit did not converge. Consider the following:
1) Enable float64 with ``jax.config.update('jax_enable_x64', True)``
2) Increase the max number of iterations or increase tolerance (if reasonable). These parameters can be specified by providing a ``solver_kwargs`` dictionary. For the available options see the ``self.solver.__init__`` docstrings.
  warnings.warn(

/home/agent/workspace/rorse_ccn-software-feb-2026_main/.venv/lib/python3.12/site-packages/nemos/glm/glm.py:728: RuntimeWarning: The fit did not converge. Consider the following:
1) Enable float64 with ``jax.config.update('jax_enable_x64', True)``
2) Increase the max number of iterations or increase tolerance (if reasonable). These parameters can be specified by providing a ``solver_kwargs`` dictionary. For the available options see the ``self.solver.__init__`` docstrings.
  warnings.warn(

/home/agent/workspace/rorse_ccn-software-feb-2026_main/.venv/lib/python3.12/site-packages/nemos/glm/glm.py:728: RuntimeWarning: The fit did not converge. Consider the following:
1) Enable float64 with ``jax.config.update('jax_enable_x64', True)``
2) Increase the max number of iterations or increase tolerance (if reasonable). These parameters can be specified by providing a ``solver_kwargs`` dictionary. For the available options see the ``self.solver.__init__`` docstrings.
  warnings.warn(

/home/agent/workspace/rorse_ccn-software-feb-2026_main/.venv/lib/python3.12/site-packages/nemos/glm/glm.py:728: RuntimeWarning: The fit did not converge. Consider the following:
1) Enable float64 with ``jax.config.update('jax_enable_x64', True)``
2) Increase the max number of iterations or increase tolerance (if reasonable). These parameters can be specified by providing a ``solver_kwargs`` dictionary. For the available options see the ``self.solver.__init__`` docstrings.
  warnings.warn(

/home/agent/workspace/rorse_ccn-software-feb-2026_main/.venv/lib/python3.12/site-packages/nemos/glm/glm.py:728: RuntimeWarning: The fit did not converge. Consider the following:
1) Enable float64 with ``jax.config.update('jax_enable_x64', True)``
2) Increase the max number of iterations or increase tolerance (if reasonable). These parameters can be specified by providing a ``solver_kwargs`` dictionary. For the available options see the ``self.solver.__init__`` docstrings.
  warnings.warn(

/home/agent/workspace/rorse_ccn-software-feb-2026_main/.venv/lib/python3.12/site-packages/nemos/glm/glm.py:728: RuntimeWarning: The fit did not converge. Consider the following:
1) Enable float64 with ``jax.config.update('jax_enable_x64', True)``
2) Increase the max number of iterations or increase tolerance (if reasonable). These parameters can be specified by providing a ``solver_kwargs`` dictionary. For the available options see the ``self.solver.__init__`` docstrings.
  warnings.warn(

/home/agent/workspace/rorse_ccn-software-feb-2026_main/.venv/lib/python3.12/site-packages/nemos/glm/glm.py:728: RuntimeWarning: The fit did not converge. Consider the following:
1) Enable float64 with ``jax.config.update('jax_enable_x64', True)``
2) Increase the max number of iterations or increase tolerance (if reasonable). These parameters can be specified by providing a ``solver_kwargs`` dictionary. For the available options see the ``self.solver.__init__`` docstrings.
  warnings.warn(

/home/agent/workspace/rorse_ccn-software-feb-2026_main/.venv/lib/python3.12/site-packages/nemos/glm/glm.py:728: RuntimeWarning: The fit did not converge. Consider the following:
1) Enable float64 with ``jax.config.update('jax_enable_x64', True)``
2) Increase the max number of iterations or increase tolerance (if reasonable). These parameters can be specified by providing a ``solver_kwargs`` dictionary. For the available options see the ``self.solver.__init__`` docstrings.
  warnings.warn(

/home/agent/workspace/rorse_ccn-software-feb-2026_main/.venv/lib/python3.12/site-packages/nemos/glm/glm.py:728: RuntimeWarning: The fit did not converge. Consider the following:
1) Enable float64 with ``jax.config.update('jax_enable_x64', True)``
2) Increase the max number of iterations or increase tolerance (if reasonable). These parameters can be specified by providing a ``solver_kwargs`` dictionary. For the available options see the ``self.solver.__init__`` docstrings.
  warnings.warn(

/home/agent/workspace/rorse_ccn-software-feb-2026_main/.venv/lib/python3.12/site-packages/nemos/glm/glm.py:728: RuntimeWarning: The fit did not converge. Consider the following:
1) Enable float64 with ``jax.config.update('jax_enable_x64', True)``
2) Increase the max number of iterations or increase tolerance (if reasonable). These parameters can be specified by providing a ``solver_kwargs`` dictionary. For the available options see the ``self.solver.__init__`` docstrings.
  warnings.warn(

/home/agent/workspace/rorse_ccn-software-feb-2026_main/.venv/lib/python3.12/site-packages/nemos/glm/glm.py:728: RuntimeWarning: The fit did not converge. Consider the following:
1) Enable float64 with ``jax.config.update('jax_enable_x64', True)``
2) Increase the max number of iterations or increase tolerance (if reasonable). These parameters can be specified by providing a ``solver_kwargs`` dictionary. For the available options see the ``self.solver.__init__`` docstrings.
  warnings.warn(

/home/agent/workspace/rorse_ccn-software-feb-2026_main/.venv/lib/python3.12/site-packages/nemos/glm/glm.py:728: RuntimeWarning: The fit did not converge. Consider the following:
1) Enable float64 with ``jax.config.update('jax_enable_x64', True)``
2) Increase the max number of iterations or increase tolerance (if reasonable). These parameters can be specified by providing a ``solver_kwargs`` dictionary. For the available options see the ``self.solver.__init__`` docstrings.
  warnings.warn(

/home/agent/workspace/rorse_ccn-software-feb-2026_main/.venv/lib/python3.12/site-packages/nemos/glm/glm.py:728: RuntimeWarning: The fit did not converge. Consider the following:
1) Enable float64 with ``jax.config.update('jax_enable_x64', True)``
2) Increase the max number of iterations or increase tolerance (if reasonable). These parameters can be specified by providing a ``solver_kwargs`` dictionary. For the available options see the ``self.solver.__init__`` docstrings.
  warnings.warn(

/home/agent/workspace/rorse_ccn-software-feb-2026_main/.venv/lib/python3.12/site-packages/nemos/glm/glm.py:728: RuntimeWarning: The fit did not converge. Consider the following:
1) Enable float64 with ``jax.config.update('jax_enable_x64', True)``
2) Increase the max number of iterations or increase tolerance (if reasonable). These parameters can be specified by providing a ``solver_kwargs`` dictionary. For the available options see the ``self.solver.__init__`` docstrings.
  warnings.warn(

/home/agent/workspace/rorse_ccn-software-feb-2026_main/.venv/lib/python3.12/site-packages/nemos/glm/glm.py:728: RuntimeWarning: The fit did not converge. Consider the following:
1) Enable float64 with ``jax.config.update('jax_enable_x64', True)``
2) Increase the max number of iterations or increase tolerance (if reasonable). These parameters can be specified by providing a ``solver_kwargs`` dictionary. For the available options see the ``self.solver.__init__`` docstrings.
  warnings.warn(

/home/agent/workspace/rorse_ccn-software-feb-2026_main/.venv/lib/python3.12/site-packages/nemos/glm/glm.py:728: RuntimeWarning: The fit did not converge. Consider the following:
1) Enable float64 with ``jax.config.update('jax_enable_x64', True)``
2) Increase the max number of iterations or increase tolerance (if reasonable). These parameters can be specified by providing a ``solver_kwargs`` dictionary. For the available options see the ``self.solver.__init__`` docstrings.
  warnings.warn(

/home/agent/workspace/rorse_ccn-software-feb-2026_main/.venv/lib/python3.12/site-packages/nemos/glm/glm.py:728: RuntimeWarning: The fit did not converge. Consider the following:
1) Enable float64 with ``jax.config.update('jax_enable_x64', True)``
2) Increase the max number of iterations or increase tolerance (if reasonable). These parameters can be specified by providing a ``solver_kwargs`` dictionary. For the available options see the ``self.solver.__init__`` docstrings.
  warnings.warn(

/home/agent/workspace/rorse_ccn-software-feb-2026_main/.venv/lib/python3.12/site-packages/nemos/glm/glm.py:728: RuntimeWarning: The fit did not converge. Consider the following:
1) Enable float64 with ``jax.config.update('jax_enable_x64', True)``
2) Increase the max number of iterations or increase tolerance (if reasonable). These parameters can be specified by providing a ``solver_kwargs`` dictionary. For the available options see the ``self.solver.__init__`` docstrings.
  warnings.warn(

/home/agent/workspace/rorse_ccn-software-feb-2026_main/.venv/lib/python3.12/site-packages/nemos/glm/glm.py:728: RuntimeWarning: The fit did not converge. Consider the following:
1) Enable float64 with ``jax.config.update('jax_enable_x64', True)``
2) Increase the max number of iterations or increase tolerance (if reasonable). These parameters can be specified by providing a ``solver_kwargs`` dictionary. For the available options see the ``self.solver.__init__`` docstrings.
  warnings.warn(

/home/agent/workspace/rorse_ccn-software-feb-2026_main/.venv/lib/python3.12/site-packages/nemos/glm/glm.py:728: RuntimeWarning: The fit did not converge. Consider the following:
1) Enable float64 with ``jax.config.update('jax_enable_x64', True)``
2) Increase the max number of iterations or increase tolerance (if reasonable). These parameters can be specified by providing a ``solver_kwargs`` dictionary. For the available options see the ``self.solver.__init__`` docstrings.
  warnings.warn(

/home/agent/workspace/rorse_ccn-software-feb-2026_main/.venv/lib/python3.12/site-packages/nemos/glm/glm.py:728: RuntimeWarning: The fit did not converge. Consider the following:
1) Enable float64 with ``jax.config.update('jax_enable_x64', True)``
2) Increase the max number of iterations or increase tolerance (if reasonable). These parameters can be specified by providing a ``solver_kwargs`` dictionary. For the available options see the ``self.solver.__init__`` docstrings.
  warnings.warn(

/home/agent/workspace/rorse_ccn-software-feb-2026_main/.venv/lib/python3.12/site-packages/nemos/glm/glm.py:728: RuntimeWarning: The fit did not converge. Consider the following:
1) Enable float64 with ``jax.config.update('jax_enable_x64', True)``
2) Increase the max number of iterations or increase tolerance (if reasonable). These parameters can be specified by providing a ``solver_kwargs`` dictionary. For the available options see the ``self.solver.__init__`` docstrings.
  warnings.warn(

/home/agent/workspace/rorse_ccn-software-feb-2026_main/.venv/lib/python3.12/site-packages/nemos/glm/glm.py:728: RuntimeWarning: The fit did not converge. Consider the following:
1) Enable float64 with ``jax.config.update('jax_enable_x64', True)``
2) Increase the max number of iterations or increase tolerance (if reasonable). These parameters can be specified by providing a ``solver_kwargs`` dictionary. For the available options see the ``self.solver.__init__`` docstrings.
  warnings.warn(

/home/agent/workspace/rorse_ccn-software-feb-2026_main/.venv/lib/python3.12/site-packages/nemos/glm/glm.py:728: RuntimeWarning: The fit did not converge. Consider the following:
1) Enable float64 with ``jax.config.update('jax_enable_x64', True)``
2) Increase the max number of iterations or increase tolerance (if reasonable). These parameters can be specified by providing a ``solver_kwargs`` dictionary. For the available options see the ``self.solver.__init__`` docstrings.
  warnings.warn(

/home/agent/workspace/rorse_ccn-software-feb-2026_main/.venv/lib/python3.12/site-packages/nemos/glm/glm.py:728: RuntimeWarning: The fit did not converge. Consider the following:
1) Enable float64 with ``jax.config.update('jax_enable_x64', True)``
2) Increase the max number of iterations or increase tolerance (if reasonable). These parameters can be specified by providing a ``solver_kwargs`` dictionary. For the available options see the ``self.solver.__init__`` docstrings.
  warnings.warn(

/home/agent/workspace/rorse_ccn-software-feb-2026_main/.venv/lib/python3.12/site-packages/nemos/glm/glm.py:728: RuntimeWarning: The fit did not converge. Consider the following:
1) Enable float64 with ``jax.config.update('jax_enable_x64', True)``
2) Increase the max number of iterations or increase tolerance (if reasonable). These parameters can be specified by providing a ``solver_kwargs`` dictionary. For the available options see the ``self.solver.__init__`` docstrings.
  warnings.warn(

/home/agent/workspace/rorse_ccn-software-feb-2026_main/.venv/lib/python3.12/site-packages/nemos/glm/glm.py:728: RuntimeWarning: The fit did not converge. Consider the following:
1) Enable float64 with ``jax.config.update('jax_enable_x64', True)``
2) Increase the max number of iterations or increase tolerance (if reasonable). These parameters can be specified by providing a ``solver_kwargs`` dictionary. For the available options see the ``self.solver.__init__`` docstrings.
  warnings.warn(

/home/agent/workspace/rorse_ccn-software-feb-2026_main/.venv/lib/python3.12/site-packages/nemos/glm/glm.py:728: RuntimeWarning: The fit did not converge. Consider the following:
1) Enable float64 with ``jax.config.update('jax_enable_x64', True)``
2) Increase the max number of iterations or increase tolerance (if reasonable). These parameters can be specified by providing a ``solver_kwargs`` dictionary. For the available options see the ``self.solver.__init__`` docstrings.
  warnings.warn(

/home/agent/workspace/rorse_ccn-software-feb-2026_main/.venv/lib/python3.12/site-packages/nemos/glm/glm.py:728: RuntimeWarning: The fit did not converge. Consider the following:
1) Enable float64 with ``jax.config.update('jax_enable_x64', True)``
2) Increase the max number of iterations or increase tolerance (if reasonable). These parameters can be specified by providing a ``solver_kwargs`` dictionary. For the available options see the ``self.solver.__init__`` docstrings.
  warnings.warn(

/home/agent/workspace/rorse_ccn-software-feb-2026_main/.venv/lib/python3.12/site-packages/nemos/glm/glm.py:728: RuntimeWarning: The fit did not converge. Consider the following:
1) Enable float64 with ``jax.config.update('jax_enable_x64', True)``
2) Increase the max number of iterations or increase tolerance (if reasonable). These parameters can be specified by providing a ``solver_kwargs`` dictionary. For the available options see the ``self.solver.__init__`` docstrings.
  warnings.warn(

/home/agent/workspace/rorse_ccn-software-feb-2026_main/.venv/lib/python3.12/site-packages/nemos/glm/glm.py:728: RuntimeWarning: The fit did not converge. Consider the following:
1) Enable float64 with ``jax.config.update('jax_enable_x64', True)``
2) Increase the max number of iterations or increase tolerance (if reasonable). These parameters can be specified by providing a ``solver_kwargs`` dictionary. For the available options see the ``self.solver.__init__`` docstrings.
  warnings.warn(

/home/agent/workspace/rorse_ccn-software-feb-2026_main/.venv/lib/python3.12/site-packages/nemos/glm/glm.py:728: RuntimeWarning: The fit did not converge. Consider the following:
1) Enable float64 with ``jax.config.update('jax_enable_x64', True)``
2) Increase the max number of iterations or increase tolerance (if reasonable). These parameters can be specified by providing a ``solver_kwargs`` dictionary. For the available options see the ``self.solver.__init__`` docstrings.
  warnings.warn(

/home/agent/workspace/rorse_ccn-software-feb-2026_main/.venv/lib/python3.12/site-packages/nemos/glm/glm.py:728: RuntimeWarning: The fit did not converge. Consider the following:
1) Enable float64 with ``jax.config.update('jax_enable_x64', True)``
2) Increase the max number of iterations or increase tolerance (if reasonable). These parameters can be specified by providing a ``solver_kwargs`` dictionary. For the available options see the ``self.solver.__init__`` docstrings.
  warnings.warn(

/home/agent/workspace/rorse_ccn-software-feb-2026_main/.venv/lib/python3.12/site-packages/nemos/glm/glm.py:728: RuntimeWarning: The fit did not converge. Consider the following:
1) Enable float64 with ``jax.config.update('jax_enable_x64', True)``
2) Increase the max number of iterations or increase tolerance (if reasonable). These parameters can be specified by providing a ``solver_kwargs`` dictionary. For the available options see the ``self.solver.__init__`` docstrings.
  warnings.warn(

/home/agent/workspace/rorse_ccn-software-feb-2026_main/.venv/lib/python3.12/site-packages/nemos/glm/glm.py:728: RuntimeWarning: The fit did not converge. Consider the following:
1) Enable float64 with ``jax.config.update('jax_enable_x64', True)``
2) Increase the max number of iterations or increase tolerance (if reasonable). These parameters can be specified by providing a ``solver_kwargs`` dictionary. For the available options see the ``self.solver.__init__`` docstrings.
  warnings.warn(

/home/agent/workspace/rorse_ccn-software-feb-2026_main/.venv/lib/python3.12/site-packages/nemos/glm/glm.py:728: RuntimeWarning: The fit did not converge. Consider the following:
1) Enable float64 with ``jax.config.update('jax_enable_x64', True)``
2) Increase the max number of iterations or increase tolerance (if reasonable). These parameters can be specified by providing a ``solver_kwargs`` dictionary. For the available options see the ``self.solver.__init__`` docstrings.
  warnings.warn(

/home/agent/workspace/rorse_ccn-software-feb-2026_main/.venv/lib/python3.12/site-packages/nemos/glm/glm.py:728: RuntimeWarning: The fit did not converge. Consider the following:
1) Enable float64 with ``jax.config.update('jax_enable_x64', True)``
2) Increase the max number of iterations or increase tolerance (if reasonable). These parameters can be specified by providing a ``solver_kwargs`` dictionary. For the available options see the ``self.solver.__init__`` docstrings.
  warnings.warn(

/home/agent/workspace/rorse_ccn-software-feb-2026_main/.venv/lib/python3.12/site-packages/nemos/glm/glm.py:728: RuntimeWarning: The fit did not converge. Consider the following:
1) Enable float64 with ``jax.config.update('jax_enable_x64', True)``
2) Increase the max number of iterations or increase tolerance (if reasonable). These parameters can be specified by providing a ``solver_kwargs`` dictionary. For the available options see the ``self.solver.__init__`` docstrings.
  warnings.warn(

/home/agent/workspace/rorse_ccn-software-feb-2026_main/.venv/lib/python3.12/site-packages/nemos/glm/glm.py:728: RuntimeWarning: The fit did not converge. Consider the following:
1) Enable float64 with ``jax.config.update('jax_enable_x64', True)``
2) Increase the max number of iterations or increase tolerance (if reasonable). These parameters can be specified by providing a ``solver_kwargs`` dictionary. For the available options see the ``self.solver.__init__`` docstrings.
  warnings.warn(

/home/agent/workspace/rorse_ccn-software-feb-2026_main/.venv/lib/python3.12/site-packages/nemos/glm/glm.py:728: RuntimeWarning: The fit did not converge. Consider the following:
1) Enable float64 with ``jax.config.update('jax_enable_x64', True)``
2) Increase the max number of iterations or increase tolerance (if reasonable). These parameters can be specified by providing a ``solver_kwargs`` dictionary. For the available options see the ``self.solver.__init__`` docstrings.
  warnings.warn(

/home/agent/workspace/rorse_ccn-software-feb-2026_main/.venv/lib/python3.12/site-packages/nemos/glm/glm.py:728: RuntimeWarning: The fit did not converge. Consider the following:
1) Enable float64 with ``jax.config.update('jax_enable_x64', True)``
2) Increase the max number of iterations or increase tolerance (if reasonable). These parameters can be specified by providing a ``solver_kwargs`` dictionary. For the available options see the ``self.solver.__init__`` docstrings.
  warnings.warn(

/home/agent/workspace/rorse_ccn-software-feb-2026_main/.venv/lib/python3.12/site-packages/nemos/glm/glm.py:728: RuntimeWarning: The fit did not converge. Consider the following:
1) Enable float64 with ``jax.config.update('jax_enable_x64', True)``
2) Increase the max number of iterations or increase tolerance (if reasonable). These parameters can be specified by providing a ``solver_kwargs`` dictionary. For the available options see the ``self.solver.__init__`` docstrings.
  warnings.warn(

/home/agent/workspace/rorse_ccn-software-feb-2026_main/.venv/lib/python3.12/site-packages/nemos/glm/glm.py:728: RuntimeWarning: The fit did not converge. Consider the following:
1) Enable float64 with ``jax.config.update('jax_enable_x64', True)``
2) Increase the max number of iterations or increase tolerance (if reasonable). These parameters can be specified by providing a ``solver_kwargs`` dictionary. For the available options see the ``self.solver.__init__`` docstrings.
  warnings.warn(

/home/agent/workspace/rorse_ccn-software-feb-2026_main/.venv/lib/python3.12/site-packages/nemos/glm/glm.py:728: RuntimeWarning: The fit did not converge. Consider the following:
1) Enable float64 with ``jax.config.update('jax_enable_x64', True)``
2) Increase the max number of iterations or increase tolerance (if reasonable). These parameters can be specified by providing a ``solver_kwargs`` dictionary. For the available options see the ``self.solver.__init__`` docstrings.
  warnings.warn(

GridSearchCV(cv=5,
             estimator=Pipeline(steps=[('basis',
                                        Transformer('(position + speed)': AdditiveBasis(
    basis1='position': MSplineEval(n_basis_funcs=10, order=4),
    basis2='speed': MSplineEval(n_basis_funcs=15, order=4),
))),
                                       ('glm',
                                        PopulationGLM(inverse_link_function=<function exp at 0x7fd3d91c99e0>, observation_model=PoissonObservations(), regularizer=UnRegularized(), solver_kwargs={'tol': 1e-12}, solver_name='LBFGS'))]),
             param_grid={'basis__position__n_basis_funcs': [5, 10, 20],
                         'basis__speed': [MSplineEval(n_basis_funcs=15),
                                          BSplineEval(n_basis_funcs=15),
                                          RaisedCosineLinearEval(n_basis_funcs=15)]})

In a Jupyter environment, please rerun this cell to show the HTML representation or trust the notebook.
On GitHub, the HTML representation is unable to render, please try loading this page with nbviewer.org.

Investigate results:

pd.DataFrame(cv.cv_results_)

	mean_fit_time	std_fit_time	mean_score_time	std_score_time	param_basis__position__n_basis_funcs	param_basis__speed	params	split0_test_score	split1_test_score	split2_test_score	split3_test_score	split4_test_score	mean_test_score	std_test_score	rank_test_score
0	1.922558	0.666500	0.527833	0.528948	5	(((MSplineEval(n_basis_funcs=15, order=4))))	{'basis__position__n_basis_funcs': 5, 'basis__...	-0.136246	-0.116545	-0.147549	-0.122671	-0.128592	-0.130321	0.010800	3
1	1.495269	0.247778	0.037604	0.004972	5	(((BSplineEval(n_basis_funcs=15, order=4))))	{'basis__position__n_basis_funcs': 5, 'basis__...	-0.150079	-0.155905	-0.172195	-0.126545	-0.198609	-0.160667	0.023965	8
2	1.495143	0.226423	0.144760	0.129065	5	(((RaisedCosineLinearEval(n_basis_funcs=15, wi...	{'basis__position__n_basis_funcs': 5, 'basis__...	-0.163750	-0.128224	-0.184139	-0.125410	-0.216403	-0.163585	0.034409	9
3	1.619937	0.185751	0.145199	0.046221	10	(((MSplineEval(n_basis_funcs=15, order=4))))	{'basis__position__n_basis_funcs': 10, 'basis_...	-0.127216	-0.113708	-0.148560	-0.122756	-0.132335	-0.128915	0.011573	2
4	1.626782	0.260083	0.055368	0.008168	10	(((BSplineEval(n_basis_funcs=15, order=4))))	{'basis__position__n_basis_funcs': 10, 'basis_...	-0.153041	-0.131869	-0.165941	-0.123137	-0.176732	-0.150144	0.020141	6
5	1.539392	0.141097	0.057420	0.009103	10	(((RaisedCosineLinearEval(n_basis_funcs=15, wi...	{'basis__position__n_basis_funcs': 10, 'basis_...	-0.148822	-0.126507	-0.168947	-0.122744	-0.168339	-0.147072	0.019742	4
6	1.914416	0.385908	0.283016	0.193542	20	(((MSplineEval(n_basis_funcs=15, order=4))))	{'basis__position__n_basis_funcs': 20, 'basis_...	-0.126687	-0.112765	-0.146401	-0.124083	-0.123058	-0.126599	0.010976	1
7	1.756607	0.184487	0.079363	0.019208	20	(((BSplineEval(n_basis_funcs=15, order=4))))	{'basis__position__n_basis_funcs': 20, 'basis_...	-0.153473	-0.132539	-0.167847	-0.124594	-0.179855	-0.151662	0.020777	7
8	1.638160	0.157081	0.102488	0.014956	20	(((RaisedCosineLinearEval(n_basis_funcs=15, wi...	{'basis__position__n_basis_funcs': 20, 'basis_...	-0.146942	-0.128252	-0.172728	-0.124165	-0.167277	-0.147873	0.019709	5

scikit-learn does not cache every model that it runs (that could get prohibitively large!), but it does store the best estimator, as the appropriately-named best_estimator_.

Can easily grab the best estimator, the pipeline that did the best:

```{code-cell} ipython3 # define the grid search and fit best_estim = best_estim ```

best_estim = cv.best_estimator_
best_estim

Pipeline(steps=[('basis',
                 Transformer('(position + speed)': AdditiveBasis(
    basis1='position': MSplineEval(n_basis_funcs=20, order=4),
    basis2='speed': MSplineEval(n_basis_funcs=15, order=4),
))),
                ('glm',
                 PopulationGLM(inverse_link_function=<function exp at 0x7fd3d91c99e0>, observation_model=PoissonObservations(), regularizer=UnRegularized(), solver_kwargs={'tol': 1e-12}, solver_name='LBFGS'))])

In a Jupyter environment, please rerun this cell to show the HTML representation or trust the notebook.
On GitHub, the HTML representation is unable to render, please try loading this page with nbviewer.org.

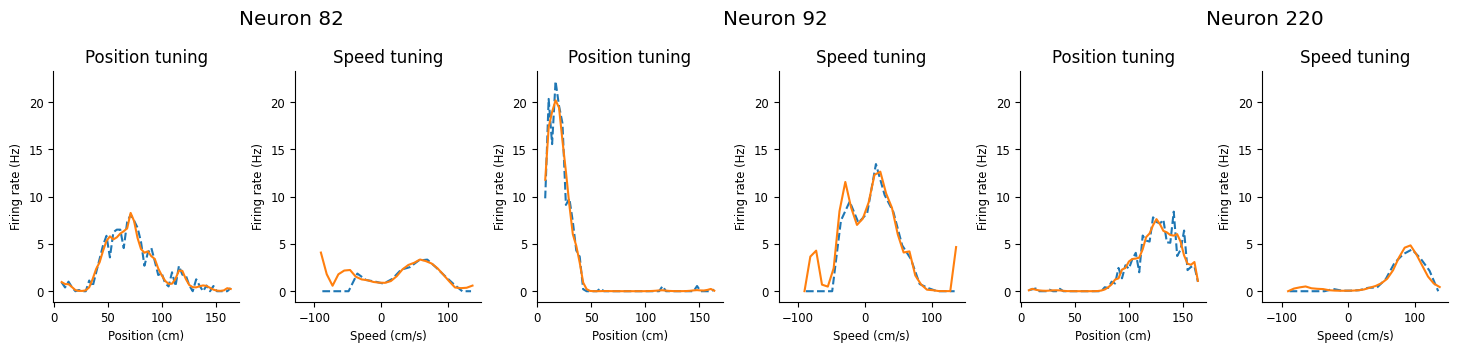

We then visualize the predictions of best_estim the same as before.

Visualize model predictions!

visualize_model_predictions(best_estim, transformer_input)

../../_images/b23c70b7963378df985447356746d5739822cfa80a9b4888b86f26fbb5a2aa10.png

Find the best basis!

As an exercise, spend 10 minutes exploring the possible basis objects and seeing which performs the best.

You should use the pipe object we defined in this section.
You will need to redefine the param_grid dictionary, setting basis__speed and basis__position (or their attributes, e.g., basis__position__n_basis_funcs) to a range of values. Remember that all combinations are tested, so if you e.g., select 5 choices for each, you’ll be testing 25 different combinations!

param_grid = {
    "basis__position": ...,
    "basis__speed": ...,
}

After defining param_grid, reinitialize cv (you can do so with the same arguments).
Then call cv.fit and re-run pd.DataFrame(cv.cv_results_) to summarize the results.
Finally, visualize the best estimator with visualize_model_predictions(cv.best_estimator_, transformer_input)

Who can find the best set of basis objects?

Feature selection#

Now that we understand how scikit-learn works with NeMoS, we can determine whether both position and speed are necessary inputs by performing feature selection.

Our goal is to compare alternative models: position + speed, position only, or speed only. However, scikit-learn’s cross-validation assumes that the input to the pipeline stays constant—only the hyperparameters change. So how can we compare models that require different features?

Here’s a clever NeMoS trick: we’ll create a “null” basis that produces zero features. This way, all models take the same 2-D input (position, speed), but some features become empty arrays. We can define this null basis using CustomBasis, which creates a basis from a list of functions.

Let’s move on to feature selection. Our goal is to compare alternative models: position + speed, position only, or speed only.

Problem: scikit-learn’s cross-validation assumes the pipeline input stays constant, but each model needs different features. How do we solve this?

Solution: Use a “null” basis that produces zero features!

We’ll create this null basis using CustomBasis, which defines a basis from custom functions.

```{code-cell} ipython3 # define a function that creates an empty array (n_samples, 0) def func(x): return np.zeros((x.shape[0], 0)) # create a null transformer basis using the custom basis class null_basis = # verify: this creates an empty feature array null_basis.compute_features(position).shape ```

# define a function that creates an empty array (n_samples, 0)
def func(x):
    return np.zeros((x.shape[0], 0))

# create a null transformer basis using the custom basis class
null_basis = nmo.basis.CustomBasis([func]).to_transformer()

# verify: this creates an empty feature array
null_basis.compute_features(position).shape

(19237, 0)

Why is this useful? We can combine null_basis with actual bases to create different models that all accept the same input!

Let’s define the bases for our three models:

Position + speed: combine position and speed bases
Position only: combine position basis with null basis (speed features is empty)
Speed only: combine null basis with speed basis (position features is empty)

```{code-cell} ipython3 # combine them to define each model basis_all = basis_position = basis_speed = # assign labels (optional but helpful for readability) basis_all.label = "position + speed" basis_position.label = "position only" basis_speed.label = "speed only" ```

# combine them to define each model
basis_all = (position_basis + speed_basis).to_transformer()
basis_position = (position_basis + null_basis).to_transformer()
basis_speed = (null_basis + speed_basis).to_transformer()

# assign labels (optional but helpful for readability)
basis_all.label = "position + speed"
basis_position.label = "position only"
basis_speed.label = "speed only"

These bases can all transform the same transformer_input (a TsdFrame with columns for position and speed), but they generate design matrices with different numbers of features:

# "position + speed" design: 25 features (10 + 15)
print("position + speed design matrix shape:")
print(basis_all.transform(transformer_input).shape)

# "position" design: 10 features (10 + 0)
print("\nposition design matrix shape:")
print(basis_position.transform(transformer_input).shape)

# "speed" design: 15 features (0 + 15)
print("\nspeed design matrix shape:")
print(basis_speed.transform(transformer_input).shape)

position + speed design matrix shape:
(19237, 25)

position design matrix shape:
(19237, 10)

speed design matrix shape:
(19237, 15)

To cross-validate over different basis compositions, we need to understand how they’re stored in our pipeline. The additive basis is stored as a basis attribute inside the TransformerBasis object:

# the "basis" step in our pipeline contains a TransformerBasis
# which has a "basis" attribute storing the actual additive basis
pipe["basis"].basis

'(position + speed)': AdditiveBasis(
    basis1='position': MSplineEval(n_basis_funcs=10, order=4),
    basis2='speed': MSplineEval(n_basis_funcs=15, order=4),
)

In a Jupyter environment, please rerun this cell to show the HTML representation or trust the notebook.
On GitHub, the HTML representation is unable to render, please try loading this page with nbviewer.org.

Now we can create a parameter grid for cross-validation. The key is the string "basis__basis":

First basis: the name of the pipeline step
Second basis: the attribute of the TransformerBasis object
This double-underscore notation is how scikit-learn accesses nested parameters

```{code-cell} ipython3 # create parameter grid with our three basis compositions param_grid = ```

# create parameter grid with our three basis compositions
param_grid = {
    "basis__basis": [
        basis_all,      # position + speed
        basis_position, # position only
        basis_speed     # speed only
    ],
}

```{code-cell} ipython3 # define and fit GridSearchCV cv = ```

# define and fit GridSearchCV
cv = model_selection.GridSearchCV(pipe, param_grid, cv=cv_folds)
cv.fit(transformer_input, count)

/home/agent/workspace/rorse_ccn-software-feb-2026_main/.venv/lib/python3.12/site-packages/nemos/glm/glm.py:728: RuntimeWarning: The fit did not converge. Consider the following:
1) Enable float64 with ``jax.config.update('jax_enable_x64', True)``
2) Increase the max number of iterations or increase tolerance (if reasonable). These parameters can be specified by providing a ``solver_kwargs`` dictionary. For the available options see the ``self.solver.__init__`` docstrings.
  warnings.warn(

/home/agent/workspace/rorse_ccn-software-feb-2026_main/.venv/lib/python3.12/site-packages/nemos/glm/glm.py:728: RuntimeWarning: The fit did not converge. Consider the following:
1) Enable float64 with ``jax.config.update('jax_enable_x64', True)``
2) Increase the max number of iterations or increase tolerance (if reasonable). These parameters can be specified by providing a ``solver_kwargs`` dictionary. For the available options see the ``self.solver.__init__`` docstrings.
  warnings.warn(

/home/agent/workspace/rorse_ccn-software-feb-2026_main/.venv/lib/python3.12/site-packages/nemos/glm/glm.py:728: RuntimeWarning: The fit did not converge. Consider the following:
1) Enable float64 with ``jax.config.update('jax_enable_x64', True)``
2) Increase the max number of iterations or increase tolerance (if reasonable). These parameters can be specified by providing a ``solver_kwargs`` dictionary. For the available options see the ``self.solver.__init__`` docstrings.
  warnings.warn(

/home/agent/workspace/rorse_ccn-software-feb-2026_main/.venv/lib/python3.12/site-packages/nemos/glm/glm.py:728: RuntimeWarning: The fit did not converge. Consider the following:
1) Enable float64 with ``jax.config.update('jax_enable_x64', True)``
2) Increase the max number of iterations or increase tolerance (if reasonable). These parameters can be specified by providing a ``solver_kwargs`` dictionary. For the available options see the ``self.solver.__init__`` docstrings.
  warnings.warn(

/home/agent/workspace/rorse_ccn-software-feb-2026_main/.venv/lib/python3.12/site-packages/nemos/glm/glm.py:728: RuntimeWarning: The fit did not converge. Consider the following:
1) Enable float64 with ``jax.config.update('jax_enable_x64', True)``
2) Increase the max number of iterations or increase tolerance (if reasonable). These parameters can be specified by providing a ``solver_kwargs`` dictionary. For the available options see the ``self.solver.__init__`` docstrings.
  warnings.warn(

/home/agent/workspace/rorse_ccn-software-feb-2026_main/.venv/lib/python3.12/site-packages/nemos/glm/glm.py:728: RuntimeWarning: The fit did not converge. Consider the following:
1) Enable float64 with ``jax.config.update('jax_enable_x64', True)``
2) Increase the max number of iterations or increase tolerance (if reasonable). These parameters can be specified by providing a ``solver_kwargs`` dictionary. For the available options see the ``self.solver.__init__`` docstrings.
  warnings.warn(

/home/agent/workspace/rorse_ccn-software-feb-2026_main/.venv/lib/python3.12/site-packages/nemos/glm/glm.py:728: RuntimeWarning: The fit did not converge. Consider the following:
1) Enable float64 with ``jax.config.update('jax_enable_x64', True)``
2) Increase the max number of iterations or increase tolerance (if reasonable). These parameters can be specified by providing a ``solver_kwargs`` dictionary. For the available options see the ``self.solver.__init__`` docstrings.
  warnings.warn(

/home/agent/workspace/rorse_ccn-software-feb-2026_main/.venv/lib/python3.12/site-packages/nemos/glm/glm.py:728: RuntimeWarning: The fit did not converge. Consider the following:
1) Enable float64 with ``jax.config.update('jax_enable_x64', True)``
2) Increase the max number of iterations or increase tolerance (if reasonable). These parameters can be specified by providing a ``solver_kwargs`` dictionary. For the available options see the ``self.solver.__init__`` docstrings.
  warnings.warn(

/home/agent/workspace/rorse_ccn-software-feb-2026_main/.venv/lib/python3.12/site-packages/nemos/glm/glm.py:728: RuntimeWarning: The fit did not converge. Consider the following:
1) Enable float64 with ``jax.config.update('jax_enable_x64', True)``
2) Increase the max number of iterations or increase tolerance (if reasonable). These parameters can be specified by providing a ``solver_kwargs`` dictionary. For the available options see the ``self.solver.__init__`` docstrings.
  warnings.warn(

/home/agent/workspace/rorse_ccn-software-feb-2026_main/.venv/lib/python3.12/site-packages/nemos/glm/glm.py:728: RuntimeWarning: The fit did not converge. Consider the following:
1) Enable float64 with ``jax.config.update('jax_enable_x64', True)``
2) Increase the max number of iterations or increase tolerance (if reasonable). These parameters can be specified by providing a ``solver_kwargs`` dictionary. For the available options see the ``self.solver.__init__`` docstrings.
  warnings.warn(

/home/agent/workspace/rorse_ccn-software-feb-2026_main/.venv/lib/python3.12/site-packages/nemos/glm/glm.py:728: RuntimeWarning: The fit did not converge. Consider the following:
1) Enable float64 with ``jax.config.update('jax_enable_x64', True)``
2) Increase the max number of iterations or increase tolerance (if reasonable). These parameters can be specified by providing a ``solver_kwargs`` dictionary. For the available options see the ``self.solver.__init__`` docstrings.
  warnings.warn(

/home/agent/workspace/rorse_ccn-software-feb-2026_main/.venv/lib/python3.12/site-packages/nemos/glm/glm.py:728: RuntimeWarning: The fit did not converge. Consider the following:
1) Enable float64 with ``jax.config.update('jax_enable_x64', True)``
2) Increase the max number of iterations or increase tolerance (if reasonable). These parameters can be specified by providing a ``solver_kwargs`` dictionary. For the available options see the ``self.solver.__init__`` docstrings.
  warnings.warn(

/home/agent/workspace/rorse_ccn-software-feb-2026_main/.venv/lib/python3.12/site-packages/nemos/glm/glm.py:728: RuntimeWarning: The fit did not converge. Consider the following:
1) Enable float64 with ``jax.config.update('jax_enable_x64', True)``
2) Increase the max number of iterations or increase tolerance (if reasonable). These parameters can be specified by providing a ``solver_kwargs`` dictionary. For the available options see the ``self.solver.__init__`` docstrings.
  warnings.warn(

/home/agent/workspace/rorse_ccn-software-feb-2026_main/.venv/lib/python3.12/site-packages/nemos/glm/glm.py:728: RuntimeWarning: The fit did not converge. Consider the following:
1) Enable float64 with ``jax.config.update('jax_enable_x64', True)``
2) Increase the max number of iterations or increase tolerance (if reasonable). These parameters can be specified by providing a ``solver_kwargs`` dictionary. For the available options see the ``self.solver.__init__`` docstrings.
  warnings.warn(

/home/agent/workspace/rorse_ccn-software-feb-2026_main/.venv/lib/python3.12/site-packages/nemos/glm/glm.py:728: RuntimeWarning: The fit did not converge. Consider the following:
1) Enable float64 with ``jax.config.update('jax_enable_x64', True)``
2) Increase the max number of iterations or increase tolerance (if reasonable). These parameters can be specified by providing a ``solver_kwargs`` dictionary. For the available options see the ``self.solver.__init__`` docstrings.
  warnings.warn(

/home/agent/workspace/rorse_ccn-software-feb-2026_main/.venv/lib/python3.12/site-packages/nemos/glm/glm.py:728: RuntimeWarning: The fit did not converge. Consider the following:
1) Enable float64 with ``jax.config.update('jax_enable_x64', True)``
2) Increase the max number of iterations or increase tolerance (if reasonable). These parameters can be specified by providing a ``solver_kwargs`` dictionary. For the available options see the ``self.solver.__init__`` docstrings.
  warnings.warn(

GridSearchCV(cv=5,
             estimator=Pipeline(steps=[('basis',
                                        Transformer('(position + speed)': AdditiveBasis(
    basis1='position': MSplineEval(n_basis_funcs=10, order=4),
    basis2='speed': MSplineEval(n_basis_funcs=15, order=4),
))),
                                       ('glm',
                                        PopulationGLM(inverse_link_function=<function exp at 0x7fd3d91c99e0>, observation_model=PoissonObservations(), regularizer=UnRegularized(...
    basis1='position': MSplineEval(n_basis_funcs=10, order=4),
    basis2=CustomBasis(
        funcs=[func],
        ndim_input=1,
        output_shape=(0,),
        pynapple_support=True,
        is_complex=False
    ),
)),
                                          Transformer('speed only': AdditiveBasis(
    basis1=CustomBasis(
        funcs=[func],
        ndim_input=1,
        output_shape=(0,),
        pynapple_support=True,
        is_complex=False
    ),
    basis2='speed': MSplineEval(n_basis_funcs=15, order=4),
))]})

In a Jupyter environment, please rerun this cell to show the HTML representation or trust the notebook.
On GitHub, the HTML representation is unable to render, please try loading this page with nbviewer.org.

Let's examine the model comparison results:

cv_df = pd.DataFrame(cv.cv_results_)

# display the key columns: which basis was used, its score, and ranking
cv_df[["param_basis__basis", "mean_test_score", "rank_test_score"]]

	param_basis__basis	mean_test_score	rank_test_score
0	Transformer('position + speed': AdditiveBasis(...	-0.128915	2
1	Transformer('position only': AdditiveBasis(\n ...	-0.118960	1
2	Transformer('speed only': AdditiveBasis(\n ...	-0.175172	3

Position emerges as the predictor with the greatest explanatory power, while speed adds only marginal benefits.

Find the model!

In this section, we only compared a single choice of regularization strength and basis objects for each feature. As an exercise, spend 10 minutes combining what we learned here with the earlier sections: for each feature combination (position, speed, position + speed), try several different basis objects and, optionally, different regularization strengths.

Don’t forget to visualize your model’s predictions!

Who can find the best model?

Next Steps#

For the next project, you can use all the tools showcased here to find a better encoding model for these hippocampal neurons.

Suggestions:

Extend the model by including theta phase as a predictor
Use the NeMoS MultiplicativeBasis to capture interactions between theta phase and position

References#

The data in this tutorial comes from [Grosmark, Andres D., and György Buzsáki. "Diversity in neural firing dynamics supports both rigid and learned hippocampal sequences." Science 351.6280 (2016): 1440-1443](https://www.science.org/doi/full/10.1126/science.aad1935).

	estimator estimator: estimator object This is assumed to implement the scikit-learn estimator interface. Either estimator needs to provide a ``score`` function, or ``scoring`` must be passed.	PopulationGLM...tol': 1e-12} )
	param_grid param_grid: dict or list of dictionaries Dictionary with parameters names (`str`) as keys and lists of parameter settings to try as values, or a list of such dictionaries, in which case the grids spanned by each dictionary in the list are explored. This enables searching over any sequence of parameter settings.	{'regularizer_strength': [0.0001, 1.0]}
	scoring scoring: str, callable, list, tuple or dict, default=None Strategy to evaluate the performance of the cross-validated model on the test set. If `scoring` represents a single score, one can use: - a single string (see :ref:`scoring_string_names`); - a callable (see :ref:`scoring_callable`) that returns a single value; - `None`, the `estimator`'s :ref:`default evaluation criterion ` is used. If `scoring` represents multiple scores, one can use: - a list or tuple of unique strings; - a callable returning a dictionary where the keys are the metric names and the values are the metric scores; - a dictionary with metric names as keys and callables as values. See :ref:`multimetric_grid_search` for an example.	None
	n_jobs n_jobs: int, default=None Number of jobs to run in parallel. ``None`` means 1 unless in a :obj:`joblib.parallel_backend` context. ``-1`` means using all processors. See :term:`Glossary ` for more details. .. versionchanged:: v0.20 `n_jobs` default changed from 1 to None	None
	refit refit: bool, str, or callable, default=True Refit an estimator using the best found parameters on the whole dataset. For multiple metric evaluation, this needs to be a `str` denoting the scorer that would be used to find the best parameters for refitting the estimator at the end. Where there are considerations other than maximum score in choosing a best estimator, ``refit`` can be set to a function which returns the selected ``best_index_`` given ``cv_results_``. In that case, the ``best_estimator_`` and ``best_params_`` will be set according to the returned ``best_index_`` while the ``best_score_`` attribute will not be available. The refitted estimator is made available at the ``best_estimator_`` attribute and permits using ``predict`` directly on this ``GridSearchCV`` instance. Also for multiple metric evaluation, the attributes ``best_index_``, ``best_score_`` and ``best_params_`` will only be available if ``refit`` is set and all of them will be determined w.r.t this specific scorer. See ``scoring`` parameter to know more about multiple metric evaluation. See :ref:`sphx_glr_auto_examples_model_selection_plot_grid_search_digits.py` to see how to design a custom selection strategy using a callable via `refit`. See :ref:`this example ` for an example of how to use ``refit=callable`` to balance model complexity and cross-validated score. .. versionchanged:: 0.20 Support for callable added.	True
	cv cv: int, cross-validation generator or an iterable, default=None Determines the cross-validation splitting strategy. Possible inputs for cv are: - None, to use the default 5-fold cross validation, - integer, to specify the number of folds in a `(Stratified)KFold`, - :term:`CV splitter`, - An iterable yielding (train, test) splits as arrays of indices. For integer/None inputs, if the estimator is a classifier and ``y`` is either binary or multiclass, :class:`StratifiedKFold` is used. In all other cases, :class:`KFold` is used. These splitters are instantiated with `shuffle=False` so the splits will be the same across calls. Refer :ref:`User Guide ` for the various cross-validation strategies that can be used here. .. versionchanged:: 0.22 ``cv`` default value if None changed from 3-fold to 5-fold.	5
	verbose verbose: int Controls the verbosity: the higher, the more messages. - >1 : the computation time for each fold and parameter candidate is displayed; - >2 : the score is also displayed; - >3 : the fold and candidate parameter indexes are also displayed together with the starting time of the computation.	0
	pre_dispatch pre_dispatch: int, or str, default='2n_jobs' Controls the number of jobs that get dispatched during parallel execution. Reducing this number can be useful to avoid an explosion of memory consumption when more jobs get dispatched than CPUs can process. This parameter can be: - None, in which case all the jobs are immediately created and spawned. Use this for lightweight and fast-running jobs, to avoid delays due to on-demand spawning of the jobs - An int, giving the exact number of total jobs that are spawned - A str, giving an expression as a function of n_jobs, as in '2n_jobs'	'2*n_jobs'
	error_score error_score: 'raise' or numeric, default=np.nan Value to assign to the score if an error occurs in estimator fitting. If set to 'raise', the error is raised. If a numeric value is given, FitFailedWarning is raised. This parameter does not affect the refit step, which will always raise the error.	nan
	return_train_score return_train_score: bool, default=False If ``False``, the ``cv_results_`` attribute will not include training scores. Computing training scores is used to get insights on how different parameter settings impact the overfitting/underfitting trade-off. However computing the scores on the training set can be computationally expensive and is not strictly required to select the parameters that yield the best generalization performance. .. versionadded:: 0.19 .. versionchanged:: 0.21 Default value was changed from ``True`` to ``False``	False

	estimator estimator: estimator object This is assumed to implement the scikit-learn estimator interface. Either estimator needs to provide a ``score`` function, or ``scoring`` must be passed.	PopulationGLM...tol': 1e-12} )
	param_grid param_grid: dict or list of dictionaries Dictionary with parameters names (`str`) as keys and lists of parameter settings to try as values, or a list of such dictionaries, in which case the grids spanned by each dictionary in the list are explored. This enables searching over any sequence of parameter settings.	{'regularizer_strength': [0.0001, 1.0]}
	scoring scoring: str, callable, list, tuple or dict, default=None Strategy to evaluate the performance of the cross-validated model on the test set. If `scoring` represents a single score, one can use: - a single string (see :ref:`scoring_string_names`); - a callable (see :ref:`scoring_callable`) that returns a single value; - `None`, the `estimator`'s :ref:`default evaluation criterion ` is used. If `scoring` represents multiple scores, one can use: - a list or tuple of unique strings; - a callable returning a dictionary where the keys are the metric names and the values are the metric scores; - a dictionary with metric names as keys and callables as values. See :ref:`multimetric_grid_search` for an example.	None
	n_jobs n_jobs: int, default=None Number of jobs to run in parallel. ``None`` means 1 unless in a :obj:`joblib.parallel_backend` context. ``-1`` means using all processors. See :term:`Glossary ` for more details. .. versionchanged:: v0.20 `n_jobs` default changed from 1 to None	None
	refit refit: bool, str, or callable, default=True Refit an estimator using the best found parameters on the whole dataset. For multiple metric evaluation, this needs to be a `str` denoting the scorer that would be used to find the best parameters for refitting the estimator at the end. Where there are considerations other than maximum score in choosing a best estimator, ``refit`` can be set to a function which returns the selected ``best_index_`` given ``cv_results_``. In that case, the ``best_estimator_`` and ``best_params_`` will be set according to the returned ``best_index_`` while the ``best_score_`` attribute will not be available. The refitted estimator is made available at the ``best_estimator_`` attribute and permits using ``predict`` directly on this ``GridSearchCV`` instance. Also for multiple metric evaluation, the attributes ``best_index_``, ``best_score_`` and ``best_params_`` will only be available if ``refit`` is set and all of them will be determined w.r.t this specific scorer. See ``scoring`` parameter to know more about multiple metric evaluation. See :ref:`sphx_glr_auto_examples_model_selection_plot_grid_search_digits.py` to see how to design a custom selection strategy using a callable via `refit`. See :ref:`this example ` for an example of how to use ``refit=callable`` to balance model complexity and cross-validated score. .. versionchanged:: 0.20 Support for callable added.	True
	cv cv: int, cross-validation generator or an iterable, default=None Determines the cross-validation splitting strategy. Possible inputs for cv are: - None, to use the default 5-fold cross validation, - integer, to specify the number of folds in a `(Stratified)KFold`, - :term:`CV splitter`, - An iterable yielding (train, test) splits as arrays of indices. For integer/None inputs, if the estimator is a classifier and ``y`` is either binary or multiclass, :class:`StratifiedKFold` is used. In all other cases, :class:`KFold` is used. These splitters are instantiated with `shuffle=False` so the splits will be the same across calls. Refer :ref:`User Guide ` for the various cross-validation strategies that can be used here. .. versionchanged:: 0.22 ``cv`` default value if None changed from 3-fold to 5-fold.	5
	verbose verbose: int Controls the verbosity: the higher, the more messages. - >1 : the computation time for each fold and parameter candidate is displayed; - >2 : the score is also displayed; - >3 : the fold and candidate parameter indexes are also displayed together with the starting time of the computation.	0
	pre_dispatch pre_dispatch: int, or str, default='2n_jobs' Controls the number of jobs that get dispatched during parallel execution. Reducing this number can be useful to avoid an explosion of memory consumption when more jobs get dispatched than CPUs can process. This parameter can be: - None, in which case all the jobs are immediately created and spawned. Use this for lightweight and fast-running jobs, to avoid delays due to on-demand spawning of the jobs - An int, giving the exact number of total jobs that are spawned - A str, giving an expression as a function of n_jobs, as in '2n_jobs'	'2*n_jobs'
	error_score error_score: 'raise' or numeric, default=np.nan Value to assign to the score if an error occurs in estimator fitting. If set to 'raise', the error is raised. If a numeric value is given, FitFailedWarning is raised. This parameter does not affect the refit step, which will always raise the error.	nan
	return_train_score return_train_score: bool, default=False If ``False``, the ``cv_results_`` attribute will not include training scores. Computing training scores is used to get insights on how different parameter settings impact the overfitting/underfitting trade-off. However computing the scores on the training set can be computationally expensive and is not strictly required to select the parameters that yield the best generalization performance. .. versionadded:: 0.19 .. versionchanged:: 0.21 Default value was changed from ``True`` to ``False``	False

	label	'(position + speed)'
	position__bounds	None
	position__label	'position'
	position__n_basis_funcs	10
	position__order	4
	position	'position': M...s=10, order=4)
	speed__bounds	None
	speed__label	'speed'
	speed__n_basis_funcs	15
	speed__order	4
	speed	'speed': MSpl...s=15, order=4)

	steps steps: list of tuples List of (name of step, estimator) tuples that are to be chained in sequential order. To be compatible with the scikit-learn API, all steps must define `fit`. All non-last steps must also define `transform`. See :ref:`Combining Estimators ` for more details.	[('basis', ...), ('glm', ...)]
	transform_input transform_input: list of str, default=None The names of the :term:`metadata` parameters that should be transformed by the pipeline before passing it to the step consuming it. This enables transforming some input arguments to ``fit`` (other than ``X``) to be transformed by the steps of the pipeline up to the step which requires them. Requirement is defined via :ref:`metadata routing `. For instance, this can be used to pass a validation set through the pipeline. You can only set this if metadata routing is enabled, which you can enable using ``sklearn.set_config(enable_metadata_routing=True)``. .. versionadded:: 1.6	None
	memory memory: str or object with the joblib.Memory interface, default=None Used to cache the fitted transformers of the pipeline. The last step will never be cached, even if it is a transformer. By default, no caching is performed. If a string is given, it is the path to the caching directory. Enabling caching triggers a clone of the transformers before fitting. Therefore, the transformer instance given to the pipeline cannot be inspected directly. Use the attribute ``named_steps`` or ``steps`` to inspect estimators within the pipeline. Caching the transformers is advantageous when fitting is time consuming. See :ref:`sphx_glr_auto_examples_neighbors_plot_caching_nearest_neighbors.py` for an example on how to enable caching.	None
	verbose verbose: bool, default=False If True, the time elapsed while fitting each step will be printed as it is completed.	False

	label	'(position + speed)'
	position__bounds	None
	position__label	'position'
	position__n_basis_funcs	10
	position__order	4
	position	'position': M...s=10, order=4)
	speed__bounds	None
	speed__label	'speed'
	speed__n_basis_funcs	15
	speed__order	4
	speed	'speed': MSpl...s=15, order=4)

	observation_model	PoissonObservations()
	inverse_link_function	<function exp...x7fd3d91c99e0>
	regularizer	Ridge()
	regularizer_strength	1.0
	solver_name	'LBFGS'
	solver_kwargs	{'tol': 1e-12}
	feature_mask	None

	estimator estimator: estimator object This is assumed to implement the scikit-learn estimator interface. Either estimator needs to provide a ``score`` function, or ``scoring`` must be passed.	Pipeline(step...me='LBFGS'))])
	param_grid param_grid: dict or list of dictionaries Dictionary with parameters names (`str`) as keys and lists of parameter settings to try as values, or a list of such dictionaries, in which case the grids spanned by each dictionary in the list are explored. This enables searching over any sequence of parameter settings.	{'basis__position__n_basis_funcs': [5, 10, ...], 'basis__speed': [MSplineEval(n...s=15, order=4), BSplineEval(n...s=15, order=4), ...]}
	scoring scoring: str, callable, list, tuple or dict, default=None Strategy to evaluate the performance of the cross-validated model on the test set. If `scoring` represents a single score, one can use: - a single string (see :ref:`scoring_string_names`); - a callable (see :ref:`scoring_callable`) that returns a single value; - `None`, the `estimator`'s :ref:`default evaluation criterion ` is used. If `scoring` represents multiple scores, one can use: - a list or tuple of unique strings; - a callable returning a dictionary where the keys are the metric names and the values are the metric scores; - a dictionary with metric names as keys and callables as values. See :ref:`multimetric_grid_search` for an example.	None
	n_jobs n_jobs: int, default=None Number of jobs to run in parallel. ``None`` means 1 unless in a :obj:`joblib.parallel_backend` context. ``-1`` means using all processors. See :term:`Glossary ` for more details. .. versionchanged:: v0.20 `n_jobs` default changed from 1 to None	None
	refit refit: bool, str, or callable, default=True Refit an estimator using the best found parameters on the whole dataset. For multiple metric evaluation, this needs to be a `str` denoting the scorer that would be used to find the best parameters for refitting the estimator at the end. Where there are considerations other than maximum score in choosing a best estimator, ``refit`` can be set to a function which returns the selected ``best_index_`` given ``cv_results_``. In that case, the ``best_estimator_`` and ``best_params_`` will be set according to the returned ``best_index_`` while the ``best_score_`` attribute will not be available. The refitted estimator is made available at the ``best_estimator_`` attribute and permits using ``predict`` directly on this ``GridSearchCV`` instance. Also for multiple metric evaluation, the attributes ``best_index_``, ``best_score_`` and ``best_params_`` will only be available if ``refit`` is set and all of them will be determined w.r.t this specific scorer. See ``scoring`` parameter to know more about multiple metric evaluation. See :ref:`sphx_glr_auto_examples_model_selection_plot_grid_search_digits.py` to see how to design a custom selection strategy using a callable via `refit`. See :ref:`this example ` for an example of how to use ``refit=callable`` to balance model complexity and cross-validated score. .. versionchanged:: 0.20 Support for callable added.	True
	cv cv: int, cross-validation generator or an iterable, default=None Determines the cross-validation splitting strategy. Possible inputs for cv are: - None, to use the default 5-fold cross validation, - integer, to specify the number of folds in a `(Stratified)KFold`, - :term:`CV splitter`, - An iterable yielding (train, test) splits as arrays of indices. For integer/None inputs, if the estimator is a classifier and ``y`` is either binary or multiclass, :class:`StratifiedKFold` is used. In all other cases, :class:`KFold` is used. These splitters are instantiated with `shuffle=False` so the splits will be the same across calls. Refer :ref:`User Guide ` for the various cross-validation strategies that can be used here. .. versionchanged:: 0.22 ``cv`` default value if None changed from 3-fold to 5-fold.	5
	verbose verbose: int Controls the verbosity: the higher, the more messages. - >1 : the computation time for each fold and parameter candidate is displayed; - >2 : the score is also displayed; - >3 : the fold and candidate parameter indexes are also displayed together with the starting time of the computation.	0
	pre_dispatch pre_dispatch: int, or str, default='2n_jobs' Controls the number of jobs that get dispatched during parallel execution. Reducing this number can be useful to avoid an explosion of memory consumption when more jobs get dispatched than CPUs can process. This parameter can be: - None, in which case all the jobs are immediately created and spawned. Use this for lightweight and fast-running jobs, to avoid delays due to on-demand spawning of the jobs - An int, giving the exact number of total jobs that are spawned - A str, giving an expression as a function of n_jobs, as in '2n_jobs'	'2*n_jobs'
	error_score error_score: 'raise' or numeric, default=np.nan Value to assign to the score if an error occurs in estimator fitting. If set to 'raise', the error is raised. If a numeric value is given, FitFailedWarning is raised. This parameter does not affect the refit step, which will always raise the error.	nan
	return_train_score return_train_score: bool, default=False If ``False``, the ``cv_results_`` attribute will not include training scores. Computing training scores is used to get insights on how different parameter settings impact the overfitting/underfitting trade-off. However computing the scores on the training set can be computationally expensive and is not strictly required to select the parameters that yield the best generalization performance. .. versionadded:: 0.19 .. versionchanged:: 0.21 Default value was changed from ``True`` to ``False``	False

	label	'position only'
	position__bounds	None
	position__label	'position'
	position__n_basis_funcs	10
	position__order	4
	position	'position': M...s=10, order=4)
	CustomBasis__basis_kwargs	{}
	CustomBasis__funcs	[func]
	CustomBasis__is_complex	False
	CustomBasis__label	'CustomBasis'
	CustomBasis__ndim_input	1
	CustomBasis__output_shape	(0,)
	CustomBasis__pynapple_support	True
	CustomBasis	CustomBasis( ...omplex=False )

NeMoS Advanced: Cross-Validation and Model Selection

Contents

NeMoS Advanced: Cross-Validation and Model Selection#

Learning Objectives#

Pre-Processing#

Place fields#

Extract Speed per Epoch#

Define 1D NeMoS Bases#

Basis Composition#

Scikit-learn#

How to know when to regularize?#

Select basis#

Pipelines#

Cross-validating on the basis#

Feature selection#

Next Steps#

References#
